RS PRO 37-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1A, Модуль

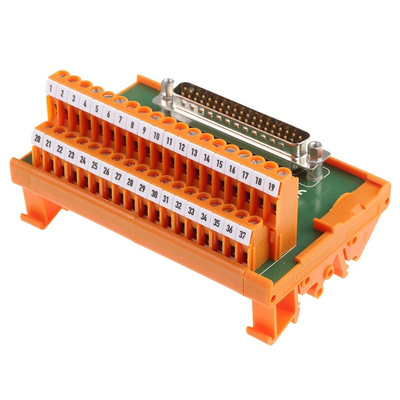

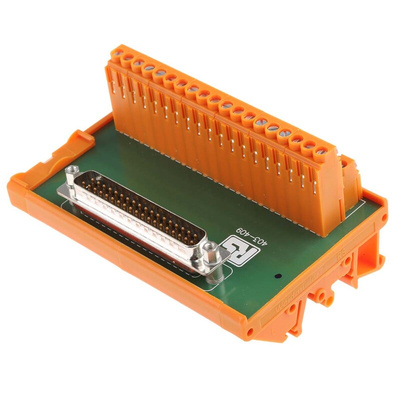

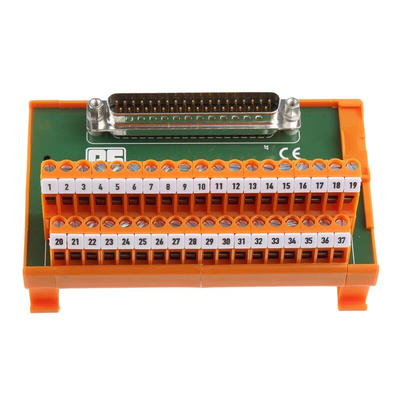

RS PRO 37 Pole D-Sub Connector, Male Interface Module, DIN Rail Mount

Need an easy method to connect your electronic equipment to your electrical control systems? This RS PRO male interface module is an ideal solution. It comes with a simple plug-and-play interface that allows you to manage your devices directly. For ease of installation, it mounts onto a DIN rail.


The wires are tightly held in place by the screw terminals, resulting in an electrically robust attachment point that ensures a strong and solid connection. It's made of polyamide (PA), a robust and wear-resistant material. The gold-plated contacts are resistant to rust, mechanical damage and corrosion, allowing you to use this module safely in demanding applications.


This D-sub connector protects against electromagnetic interference for a reliable connection. Its compact dimensions make it suitable for use in tight spaces.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• D-sub connector type


• Current rating of 1 A


• Dimensions of 110 (length) x 70 (width) x 62 mm (depth)


• Male gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C

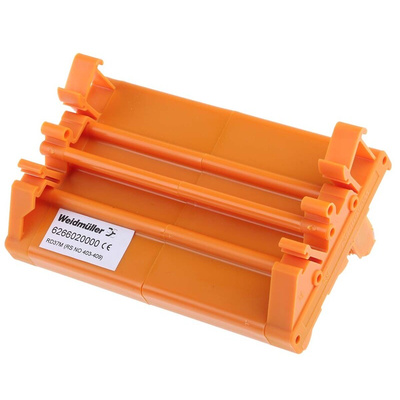

• DIN rail mounting type


• 37 contacts


• Voltage rating of 50 V
