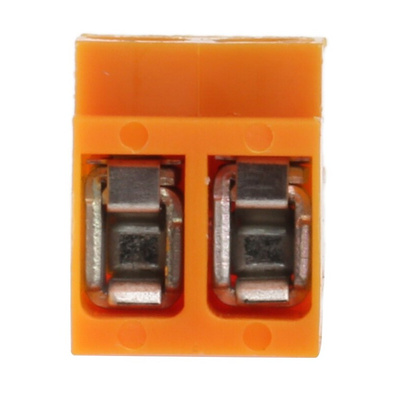

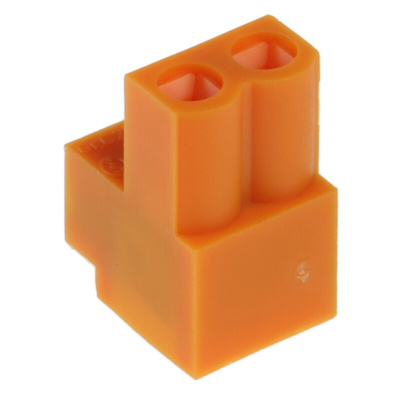

1716320000, Weidmuller 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Down Termination

0403875
Номер производителя: 1716320000Производитель: Weidmuller
Цена за шт. (норма упаковки 5 шт)
585.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Weidmuller Heavy-Duty Power Connector Module, PA Insulation Material, 4kV Rated Impulse Withstand Voltage - BL Series - 1716320000

Looking for a link between wires and your PCB? Pair up with this heavy-duty power connector module from Weidmuller. Its copper-tin alloy contacts offer high conductivity and resistance to corrosion for reliable signal transmission. To prevent shocking surprises, this connector's PA insulation provides round-the-clock protection. This material also withstands impact and heat, so it's a dependable choice for harsh industrial environments. The component accommodates wire sizes between 26 and 14AWG, making it a versatile piece of kit.

Features & Benefits

• Two-way design for multi-circuit control reduces the wiring needs of your setup
• Screw-down termination method is simple and doesn't need complex tools
• Broad operating temperature range between -50°C and +100°C for use in extreme conditions
• Wide pitch of 5.08mm prevents short circuits from accidental wire contact

Applications

• Server banks
• Consumer electronics
• Medical equipment

Is this connector flame-resistant?

Yes, this unit stops burning in 30 seconds or less in the event of a fire, so it helps to reduce the spread of flames for enhanced safety in sensitive work areas.

Approvals

UL (E 60693); CSA (12400)

5.08mm Pitch -Weidmüller Omnimate Range

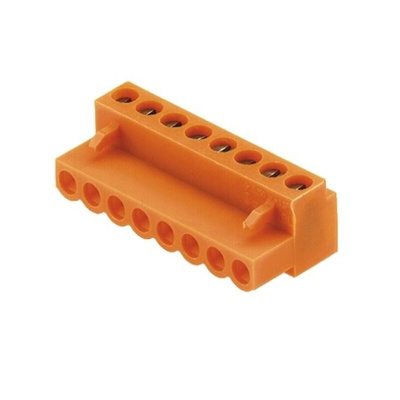

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.

Техническая спецификация
pdfDatasheet
pdfCatalogue - PCB Terminals And Connectors
Кол-во контактов:
2
Количество рядов:
1
Концевая заделка:
Нажимной винт
Материал:
Нейлон
Материал контактов:
Сплав медного олова
Номинал тока:
14A
Номинальное напряжение:
400 В
Покрытие контактов:
Олово
Размер провода:
26 → 14 AWG
Серия:
BL
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Plug
Цвет:
Оранжевый
Шаг:
5.08мм
