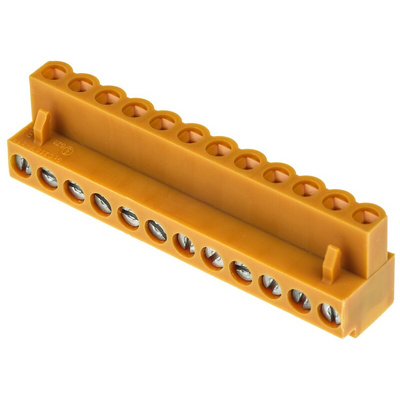

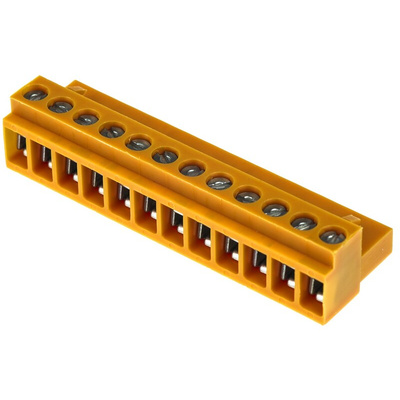

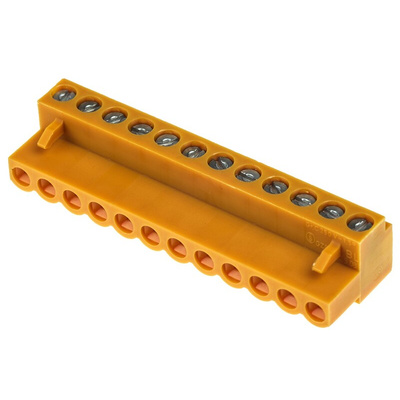

1716420000, Weidmuller Barrier Strip, 12 Contact, 5.08mm Pitch, 1 Row, 14A, 400 V, Screw Down Termination

Weidmuller Barrier Strip, Pressure Clamp Connection Type, PA Insulation Material - BL 5.08 Series - 1716420000

Make safe connections between circuits with this barrier strip from Weidmuller. Simply push the wires into each side of the product so they meet in the middle, then tighten the screws for a secure link. Thanks to its surge protection rating of 4kV, sudden impulse voltages fall by the wayside. This tough cookie has a wide operating temperature range from -50°C to +100°C, so it holds its own in harsh work areas. Its 12 contacts make it ideal for wiring up larger networks.

Features & Benefits

• Maximum tightening torque of 0.5Nm means it's a breeze to install by hand
• Light weight of 16.23g to place minimal strain on your setup
• PA insulation resists oil and chemicals for use in demanding environments
• Comes in packs of five units to keep you well-stocked
• Orange colour makes it easy to spot in busy setups

Applications

• Broadcasting equipment
• Vehicle wiring
• Robotics and automation

What wire sizes can I use with this barrier strip?

For versatility, this unit accepts wires ranging in size between 26 and 14AWG.

Approvals

UL (E 60693); CSA (12400)

5.08mm Pitch -Weidmüller Omnimate Range

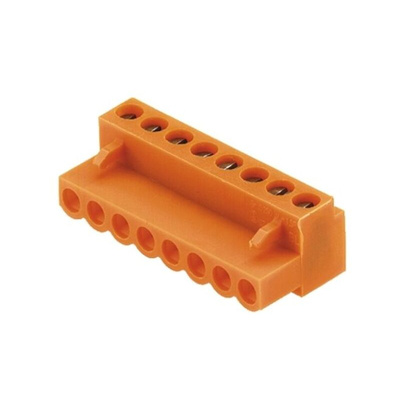

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
