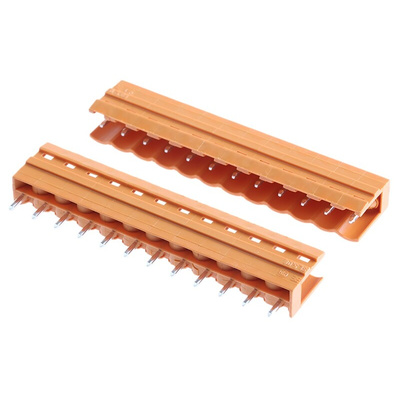

1522860000, Weidmuller 5.08mm Pitch 12 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination

Open Ends Vertical PCB Header Connectors

Rated at 8A / 250Vac
For wire size 0.5 – 1.5mm²

Approvals

UL (E 60693); CSA (12400)

Approvals

UL (E 60693); CSA (12400)

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.

BL/SL Connectors Data Sheet
