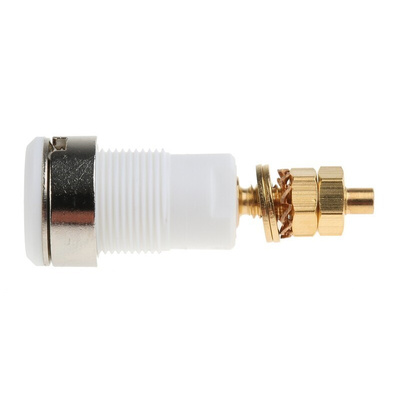

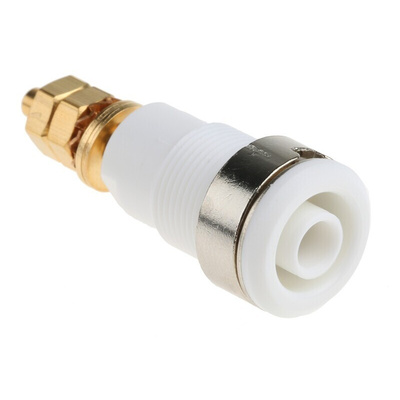

Multi Contact Socket
The Multi Contact white, female socket is a 4mm connector. It is equipped with spring-loaded plugs with a rigid insulating sleeve. The socket is screwed into predrilled panels of plastic, metal and more. It has a voltage rating of 1kV and current rating of 32A.
Features and Benefits
Solder termination
Gold contact plating and brass contact material
Compatible with shrouded plugs and leads
Termination style: M4'15mm stud with soldering hole
Length is 38.5mm
Includes nuts and washers for clamping wire or ring terminals
panel mounting hole diameter is 12mm
Applications
Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL approved
Panel-mount socket SLB4-G_Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
