E39-R1S, Omron E39 Series Reflector for Use with E3Z-B Series

Reflectors and Cordsets

A range of reflectors and cordsets for the Omron E3 series sensors.

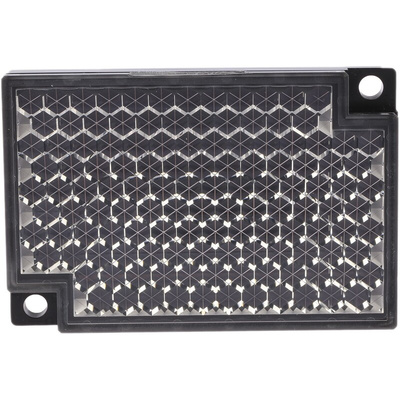

OMRON Reflector, Acrylic Reflective Surface, For Use With E3Z-B Series Sensors - E39R1S

Count on this reflector from OMRON to ensure transparent objects don't slip under the radar. It works by converting horizontal light into vertical beams to be detected by retroreflective sensors from the E3Z-B series. This helps your machinery keep an eye on transparent targets on an assembly line, such as PET bottles. The versatile unit senses both radial and axial light, with an axial sensing range between 0.1 and 3.7m and a radial sensing range between 0.1 and 2.4m.

Features & Benefits

• Suitable to use in demanding environments, thanks to its wide operating temperature range between -25°C and +55°C
• ABS backing resists impact and wear to support an extended service life
• Two pre-drilled screw holes make surface mounting a doddle

Applications

• Beverage manufacturing
• Pharmaceutical industry
• Packaging plants

What type of reflective surface does this reflector have?

The product has a reflective surface made from acrylic resin. In addition to its high resistance to corrosion and rust, this material is lightweight and durable. This means it's unlikely to break, even when put to use in harsh industrial locations.
