1608640000, Weidmuller 2-Way ZPE 2.5 Earth Terminal Block, 4mm², 26 → 12 AWG Wire, Clamp, Wemid Housing, ATEX, IECEx, Блок заземления

Earth Terminals

Designed to compliment the ’W’ screw series the screwless ’Z’ series DIN mounting terminals offers a top entry system that saves time and space. Quick & easy installation as the conductor is simply inserted by use of a clamping system. The top entry system means the conductor entry and clamp actuation access is from the same direction. Given a continuous temperature rating of 120°C, they are self-extinguishing to UL94V-0.

Note

Terminals ZPE 6, 10 and 16 only have CSA and UL Approval.

Approvals

CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI

Weidmuller Earth Terminal

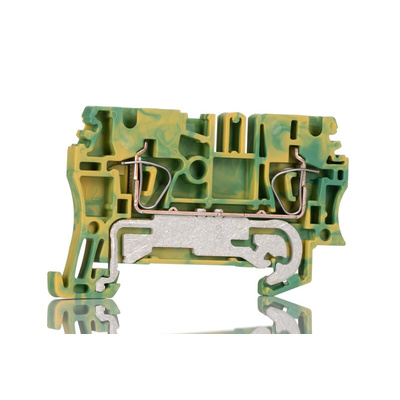

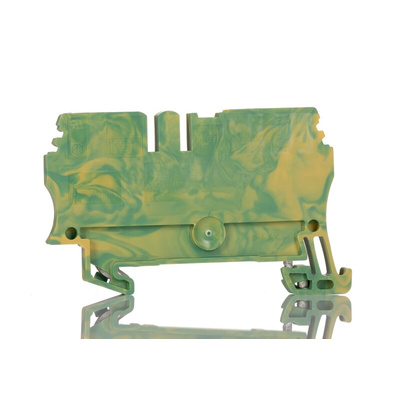

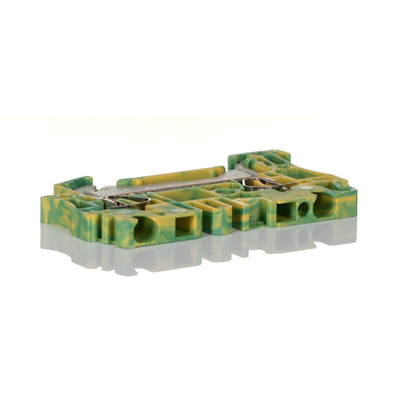

The Weidmuller earth terminal is a green, Z series ZPE 2.5 type DIN rail mount power block. This terminal has a large clamping range and two cross-connection slots. This terminal block offers a top entry system. This means the conductor entry and clamp actuation access is from the same direction. The earth block dimensions are the length of 63mm, the width of 5.1mm and height of 39.5mm.
Note:
Terminals ZPE 6, 10 and 16 only have CSA and UL Approval

Features and Benefits

Quick and easy installation
Resistant to shock and vibration
Wire size ranges between 26AWG and 12AWG
Nylon material housing
Screw termination method
Low voltage drop, gas tight contact point
High clamping point regardless of cross-section
Operating temperature ranges between -50°C and 80°C

Applications

General purpose test
Measurement

Datasheet

Datasheet - 1608640000
