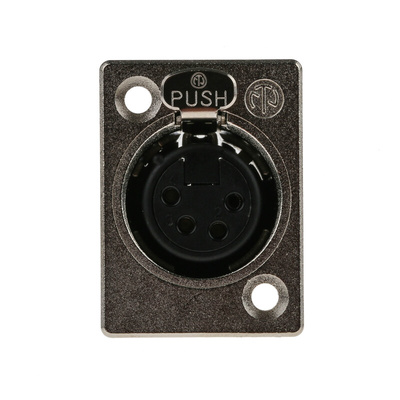

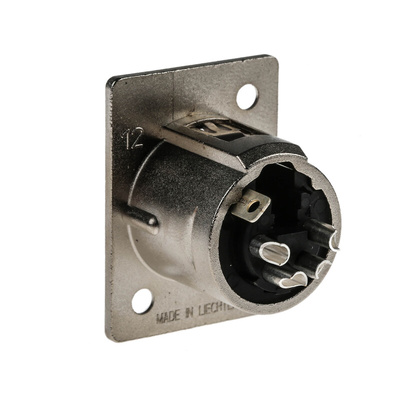

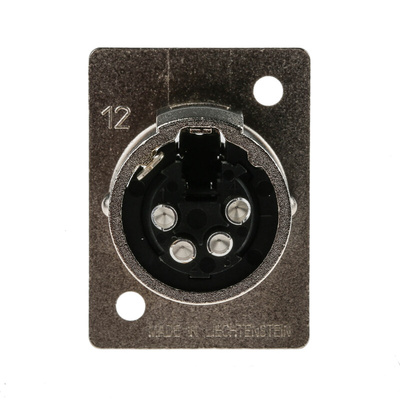

NC4FP1, Neutrik Panel Mount XLR Connector, Female, 50 V, 4 Way, Silver over Nickel Plating, Разъем

Neutrik XLR Connector

The Neutrik 4-contacts female XLR connector has a voltage rating of 50V and a current rating of 16A. This connector has a silver over nickel plating. It is the smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Identification boots supplied in a bag of 9 colours: Blue, brown, green, grey, orange, purple, red, white, yellow and black
Identification collars in a bag of 10 colours: Blue, brown, green, grey, orange, purple, red, white, yellow and black
Warning
Not to be used as mains connectors

Features and Benefits

Compatible with switchcraft D*M, D*F
Cannon XLB2*31, XLB2*32
Connector/Cable assembly is straightforward employing a minimal number of parts
Front mountable only
One-piece version insert is not removable from shell
Operating temperature ranges between -30°C and 80°C
Parts are polarised and securely fitted, thereby eliminating connector noise
Short female receptacle

AUDIO TYPE XLR AXR FINITION NOIRE

X L R C o n n e c t o r s

Technical Drawing
