FTDI Chip VNC1 Module VDIP1

FTDI Chip USB Module

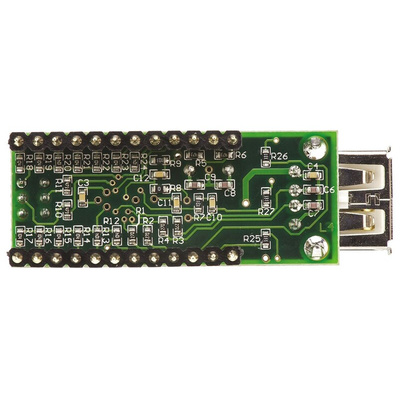

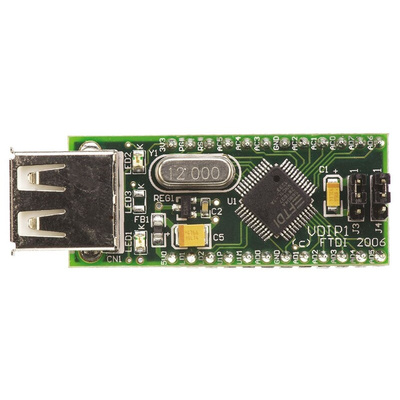

The FTDI Chip USB Module is an MCU to embedded USB host controller development kit for the VNC1L IC device. It is supplied on a PCB, designed to fit into a 24-pin DIP socket and provides access to the UART, parallel FIFO and SPI interface pins on the device via its AD and AC bus pins. This can handle the USB host interface and data transfer functions but owing to the inbuilt MCU and embedded flash memory, vinculum can encapsulate the USB device classes as well. When interfacing to mass storage devices such as USB flash drives, it also transparently handles the FAT File structure communicating via UART, SPI or parallel FIFO interfaces via a simple to implement command set. It is ideal for developing and rapid prototyping of VNC1L designs and its attractive quantity discount structure make this module suitable for incorporation into low and medium volume finished product designs.

Features and Benefits

USB single ’A’ type USB socket to interface with USB peripheral devices
Second USB interface port available via module pins, if required
Jumper selectable UART, parallel FIFO or SPI MCU interfaces
Single 5V supply input from USB connection
Program or update firmware via USB flash
Disk or via UART/Parallel FIFO/SPI interface
Power and traffic indicator LEDs
Auxiliary 3.3V at 200mA power output to power external logic
VNC1L firmware programming control pins PROG# and RESET# brought out onto jumper interface

Applications

Automation systems
IT

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

VDIP1 Vinculum VNC1L Module Datasheet
