110535-0000, ITT Cannon DL 156 Way D-sub Connector Plug, Разъем

ITT Cannon ZIP Connector Plug

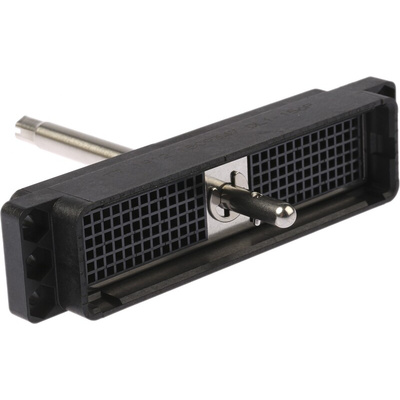

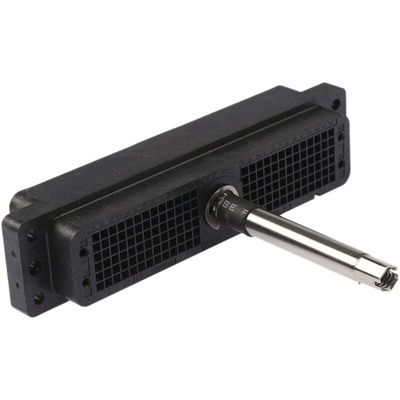

The ITT Cannon DL series high-density 156-way ZIP connector plug has zero insertion force. This male connector has 156 contacts and it is made of beryllium copper with gold plating. The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is extremely important. This connector has backshell/strain relief and polarising option, which ensures correct orientation. The housing is made of thermoplastic material.

Features and Benefits

Any number of contacts can be loaded into individual cavities, up to the maximum stated
Current rating is 5A
Voltage rating is 1.2kVAC
Long life - 10000 mating cycles
Moulded alpha numeric cavity grid reference
Operating temperature ranges between -55°C and 105°C
Panel mounting holes accept back shells and polarising pillars
Termination type is crimp

Applications

Computers
Instrumentation equipment in medical field
Broadcast and avionics industry

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

ZIF 156 Way Plastic Plug Body Data Sheet

ITT Cannon DL Series ZIF connectors Catalog
