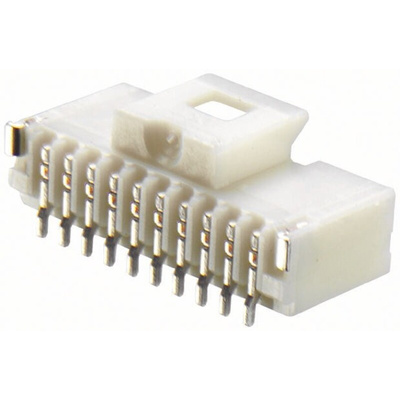

501331-1007, Molex Pico-Clasp Series Straight Surface Mount PCB Header, 10 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded

Single Row PicoClasp™

Molex PCB Header

The Molex PCB Pico-Clasp 501331 series surface mount vertical PCB header has 10-way contacts. It has a voltage rating of 50VAC/DC and a current rating of 1A. The header has tin-plated phosphor bronze contacts. The positive lock located on the inside of the headers offers reliable high-density interconnection in the smallest of the applications. It is used in portable and handheld equipment.

Features and Benefits

• High reliability
• Inner positive lock available
• Large mating guide
• Operating temperature ranges between -40°C and 105°C
• Pitch size is 1mm
• Single row
• Termination method is solder

Certifications

• UL listed

Molex Pico-Clasp™

The new Pico-Clasp™ 1.00mm pitch single and double row wire-to-board connector system from Molex is the smallest connector system on the market today with positive lock. Available on circuit size 6 and above, the positive lock located on the inside of the headers offers reliable high density interconnection in the smallest of applications. The Pico-Clasp single and double row wire-to-board system is available in 2-15 circuit single row and 20, 30 and 40 circuit double row.

501331 SMT, Single Row Positive and Friction Lock Data Sheet

Datasheet

Line Drawing
