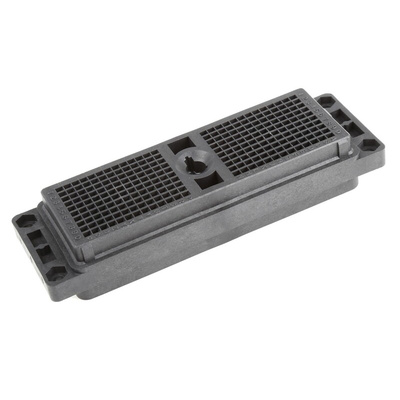

086-4501-000, ITT Cannon DL 260 Way D-sub Connector Socket, Разъем

ITT Cannon Connector

The ITT Cannon DL series high-density connector is zero insertion force(ZIF). This female connector has 260 number of contact and it is made of beryllium copper with gold plating. The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is a must. It has modulated alphanumeric cavity grid reference. This connector has backshell/strain relief and polarising option which ensure correct orientation. The housing is made of thermoplastic material.

Features and Benefits

It has electrical rating of 5A and 1.2kVAC.
Operating temperature range is between -55°C and 105°C
Termination type is crimp
Any number of contacts can be loaded into individual cavities, up to the maximum stated
Long life 10000 mating cycles
Any number of contacts can be loaded into individual cavities, up to the maximum stated
Panel mounting holes accept Backshells and polarising pillars

Applications

Used for instrumentation equipment in medical
Computer
Used in broadcast and avionics industries

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

DL, DLM, DLD Series Catalogue
