2210701, Lapp Arc Series Black 25 mm² Hook Up Wire, 3 AWG, 760/0.21 mm, 50m, Rubber Insulation, Кабель

LAPP Hook-up and Equipment Wire, 3AWG, 50m Length - Arc Series - 2210701

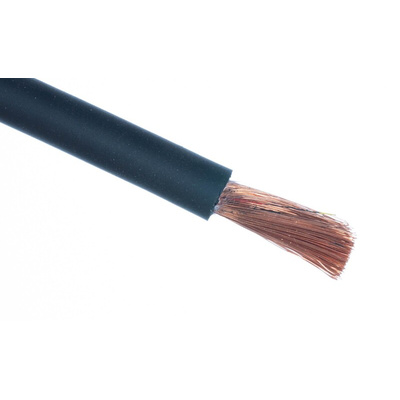

Need a flexible cable to connect high-current or spot-welding equipment? Use this single-core equipment wire from LAPP. It has a 173A current rating, so works safely with arc welding machines. It's constructed using 760 stranded copper conductors to ensure maximum reliability. These are protected by a hard-wearing and insulating compound rubber jacket to improve safety and durability without restricting the cable's flexibility. A minimum bending radius that's 12 times the outer diameter allows for easy movement between the welding machine and the connected tool. A wide operating temperature range of -25°C to +85°C makes this cable suitable for use in demanding environments, such as hot manufacturing plants and cold storage units.

Features & Benefits

• Long cable length of 50m for repairing or installing multiple machines and attachments
• Flame-retardant cable material improves workplace safety

Applications

• Shipbuilding
• Automotive manufacturing and repair
• Construction industry
• Metal fabrication workshops

Can I use this hook-up and equipment wire for outdoor applications?

Yes, the polychloroprene sheath material used on this cable is resistant to UV light and ozone, making it suitable for use outdoors.
