13162100, Epic Contact H-D 1.6 Male 10A Contact for use with Heavy Duty Power Connectors

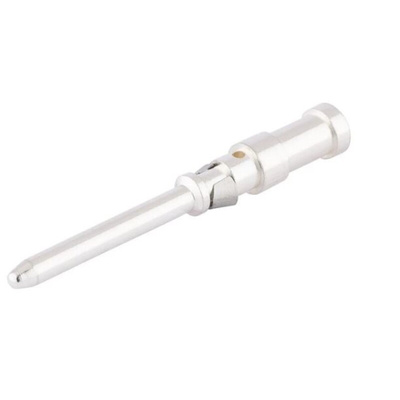

LAPP Heavy-Duty Power Connector Contact, Silver Plated, Crimp Contact Type - EPIC Series - 13162100

Choose this male heavy-duty power connector contact from LAPP to make secure electrical connections in harsh environments. Its machined shaft snaps into a compatible female contact to create a strong coupled connection. To safely complete your electrical circuit, crimp the coupled contacts tightly around your wire with a crimping tool. This component's 1.6mm diameter means you can use it with a wire size of 0.5mm².

Features & Benefits

• Conductive copper-alloy body supports simultaneous data and power transmission
• Silver contact plating means you can count on strong signals
• Robust machined component, so compatible with intensive use in heavy-duty industrial applications

Applications

• Power supplies
• Domestic appliances
• Telecommunications centres

Is this component suitable for use in moist conditions?

Yes. This heavy-duty contact creates robust connections with an IP65 rating. Once coupled, you can use it safely in moist settings as there’s no risk of damage from low-pressure water jets.

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells

Crimp Contact Product Data

EPIC CONTOOL - Kontakte und Werkzeuge / Contacts and Tools / Contacts et Outillage

Datasheet - 13162100
