FX0416, Bulgin 13A Panel Mount Fuse Holder for 6.3 x 25mm Fuse, 1P, 250V ac, Держатель предохранителя

Screw Cap

Approvals

UL

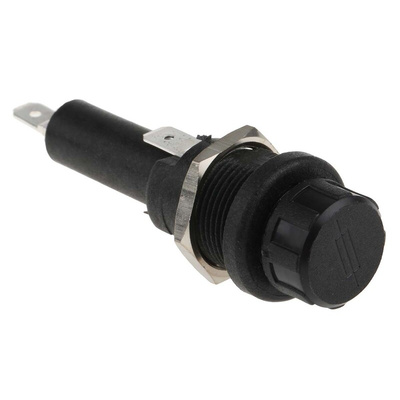

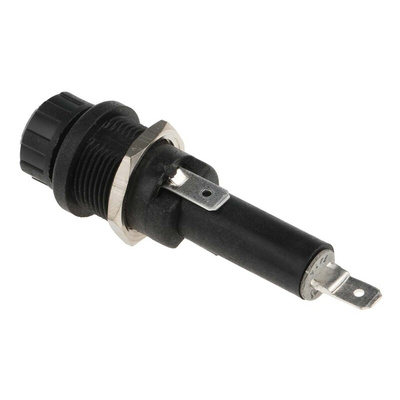

Panel Mount Screw Cap Fuse Holder

From Bulgin these panel mount fuse holders, have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.

These touchproof panel mount fuse holders are protection category PC2, they have been specifically designed to accommodate 6.3 x 25mm size fuse and are screw cap/ hand release.

Features and Benefits

• Protection category PC2
• Fuse size 6.3 x 25mm

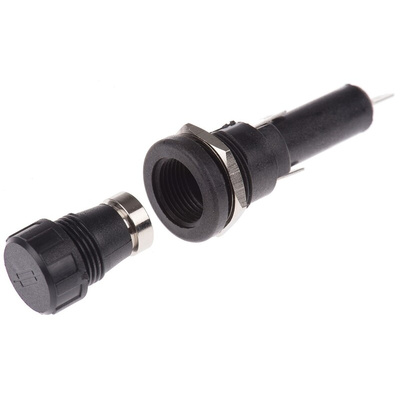

• Screw cap/ hand release
• Contacts brass, silver plated
• Glass filled nylon body, nylon cap and polyester nut

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Datasheet
