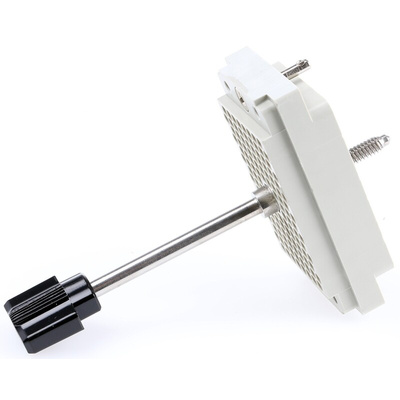

516-120-000-301, EDAC 516 120 Way D-sub Connector Plug, Разъем

EDAC Heavy Duty Power Connector Plug

The EDAC 516 series 120-way rectangular connector plug has crimp pin termination type. It has a hermaphroditic metal-to-metal contact design. The plugs or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility. It has contacts, which are made of phosphor bronze gold plating. This male plug is suitable for applications where safety and ultra-reliability are required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control and test systems. Crimp, solder and wire wrap contacts are available for this connector housing and are sold separately.

Features and Benefits

Contacts fit plug and socket
Current rating is 8.5A
Insulating resistance is 500mOhm
Operating temperature range between -65°C and 105°C
Secure connection guaranteed

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

516 SERIES Datasheet

516 Assembly
