516-120-000-402, EDAC 516 120 Way D-sub Connector Socket, Разъем

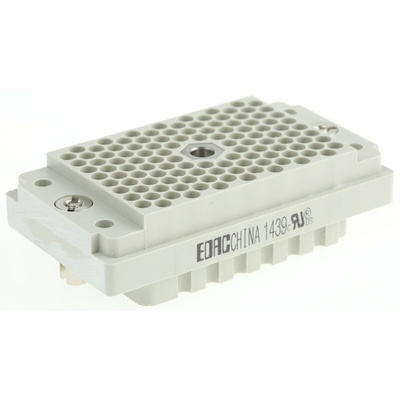

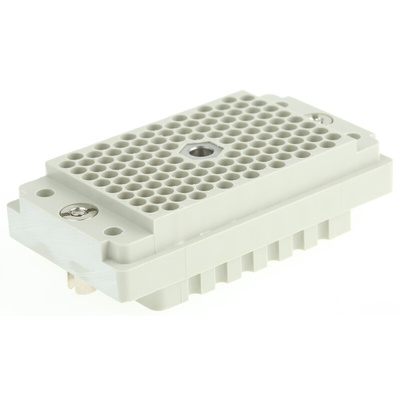

EDAC Heavy Duty Power Connector Socket

The EDAC 516 series rectangular connector socket has crimp pin termination type. This female socket is suitable for applications where safety and high reliability are required. It has a hermaphroditic metal-to-metal contact design. The sockets or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility. It has 120 contacts, which are made of phosphor bronze. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control and test systems. The hosing is made from a plastic material. Crimp, solder and wire wrap contacts are available for this connector housing and are sold separately.

Features and Benefits

Contacts fit plug and socket
Current rating is 8.5A
Insulating resistance is 500mOhm
Operating temperature ranges between -65°C and 105°C
Secure connection guaranteed

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL rated

516 Series Catalogue

Datasheet
