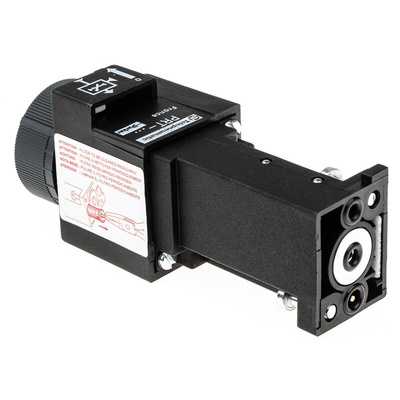

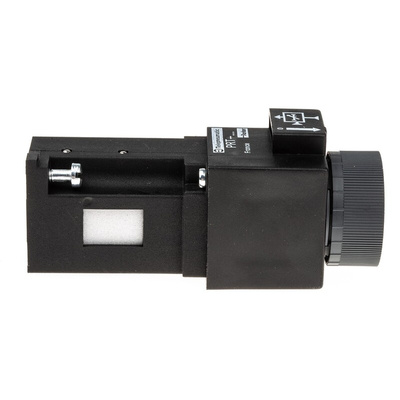

PRT-E10, Parker 3 → 8bar 0.1 → 3s Pneumatic Timer, -15 → +60°C

Parker Pneumatic Timer

The Parker PRT series pneumatic time delay relay requires operating pressure ranging between 3bar and 8bar. This ON delay timer has a timing range from 0.1 seconds to 30 seconds. This timer has maintained input signal during an adjustable time after which a regenerated output appears. It is consists of a solenoid coil/core, operating spring, timing disk, filter and diaphragm. The core moves up into the coil when it has been energized and this leads to pressure on the diaphragm. The diaphragm moves into the top chamber which un-traps the air through the timing disk. By altering the needle valve you can adjust the amount of delay.
Note:
All the logic units require mounting on a separate 2 or 3 port base, available separately. Logic units have an input (green) and output (red) pressure indicator to show the state of the respective signal. Units are supplied with two captive screws for mounting on all types of base and sealing O-rings are in the bottom of each unit.

Features and Benefits

Long life expectancy
Polyamide body material
2 or 3-Port Subbase mount
Response time is 2 millisecond to 3 millisecond
Operating temperature ranging between -15°C and 60°C
Very reliable

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet

Time Delay Relays Datasheet
