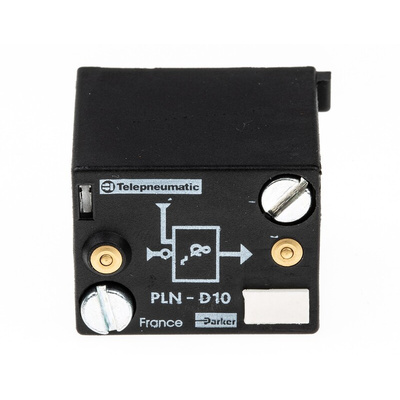

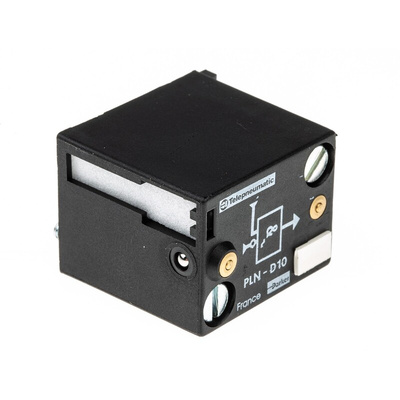

PLN-D10, Parker PLN series 8 bar Pneumatic Logic Controller with NOT function, Контроллер

Parker Pneumatic Not Logic Module

The Parker PLN series NOT pneumatic logic controller has a maximum operating pressure of 8bar. It utilizes a small form factor valve structure to minimize installation footprints. This pneumatic logic module influences the behaviour of larger power valves by a visual indication of a pneumatic input/output signal. It is supplied with interface seal and screws.
Note:

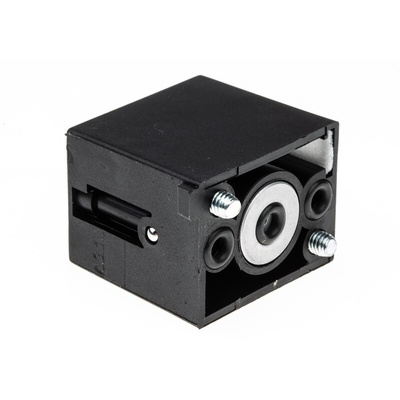

All logic units require mounting on a separate 2 or 3 port base, available separately. Logic units have an input (green) and output (red) pressure indicator to show the state of the respective signal. Units are supplied with two captive screws for mounting on all types of base and sealing O-rings are in the bottom of each unit.

Features and Benefits

Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -15°C and 60°C
Sub-base mount
