PLJ-C10, Parker PLJ series 8 bar Pneumatic Logic Controller with YES function, Контроллер

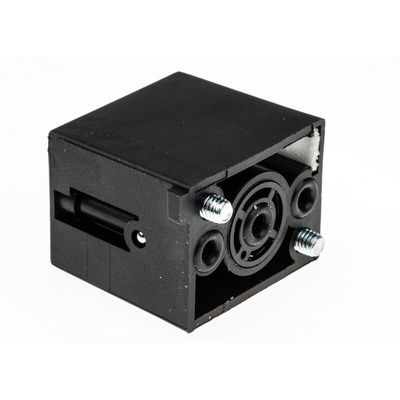

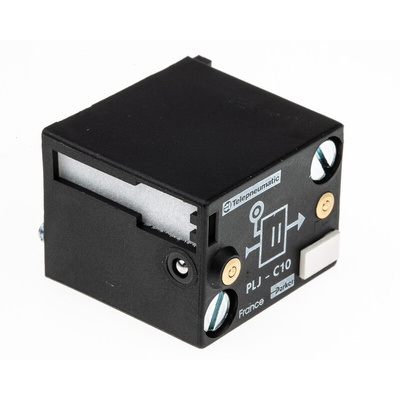

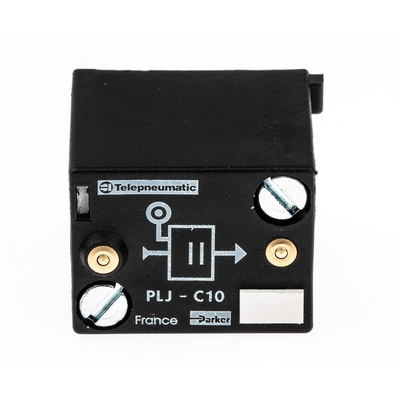

Parker Pneumatic Yes Module

The Parker PLJ series YES pneumatic logic module has a maximum operating pressure of 8bar. It utilizes a small form factor valve structure to minimize installation footprints. This pneumatic module influences the behaviour of larger power valves by a visual indication of a pneumatic input/output signal.
Note:
All logic units require mounting on a separate 2 or 3 port base, available separately. Logic units have an input (green) and output (red) pressure indicator to show the state of the respective signal. Units are supplied with two captive screws for mounting on all types of base and sealing O-rings are in the bottom of each unit.

Features and Benefits

Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -15°C and 60°C
Sub-base mount

Logic Processing Catalogue
