Amprobe 33XRA Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 750V ac Max, Мультиметр

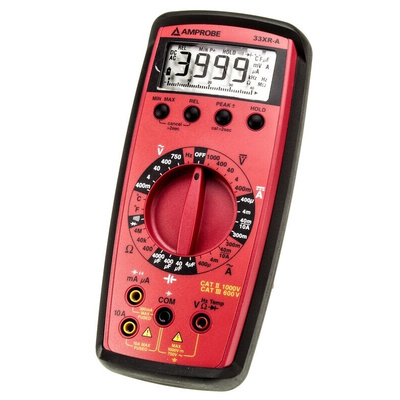

Amprobe 33XR-A Digital Multimeter

The Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance measurement. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 33XR-A is designed for field service technicians. The meter includes a Cat II 1000V, Cat III 600V safety rating.
33XR-A multimeters include all the features and functions needed for a wide range of applications. The meter measures DC voltage to 1000 V, AC voltage to 750 V, AC/DC current to 10 A, resistance to 4 MΩ, frequency to 40MHz, capacitance to 4000 μF, and temperature from -4 °F to 1832 °F. Additionally, the meter has a continuity beeper, diode test, and overload protection. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD with 41-segment analogue bar graph.
Other features of the Amprobe 33XR-A digital multimeter includes an input warning tone when test leads are put in the wrong jacks; Min/Max, Relative, Peak and Data Hold; Auto power-off and a separate door for battery and fuse access.

Features and Benefits:

• DC Voltage Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
• DC Voltage Accuracy: ±(0.7 % rdg + 1 dgt)
• AC Voltage Ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
• AC Voltage Accuracy: up to ±(1.5 % rdg + 4 dgts)
• AC/DC Current Ranges: 400 μA, 4 mA, 40 mA, 300 mA, 10 A
• AC/DC Current Accuracy: up to ±(1.0 % rdg + 1 dgt) DC; ±(1.5 % rdg + 4 dgts) AC
• Resistance Ranges: 400 Ω, 40 kΩ, 4 MΩ
• Resistance Accuracy: up to ±(1.0 % rdg + 4 dgts)
• Capacitance Ranges: 4 μF, 40 μF, 400 μF, 4000 μF
• Capacitance Accuracy: up to ±(5.0 % rdg + 5 dgts)
• Temperature Range: -4 °F to 1832 °F
• Temperature Accuracy: ± (1.0 % rdg + 3 °C )
• Frequency (autoranging) Ranges: 4 kHz, 40 kHz, 400 kHz, 4 MHz, 40MHz
• Frequency (autoranging) Accuracy: ±(0.1 % rdg + 3 dgts)
• Continuity: Audible Indication < 35 Ω
• Peak Hold, Diode Test, Overload Protection
• 3-3/4 digit LCD, 3999 counts with 41-segment analogue bar graph
• CAT II 1000 V, CAT III 600 V safety rating
• UL listed

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

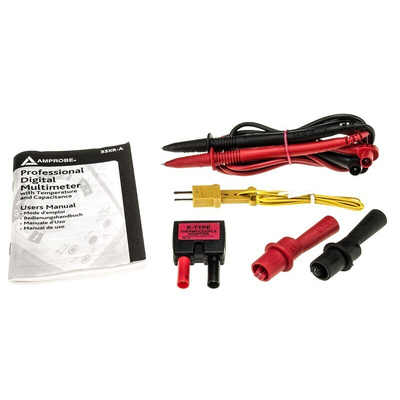

Supplied with
type":"Supplied with",

• Test leads with threaded alligator clips (TL36A)
• 9 V battery

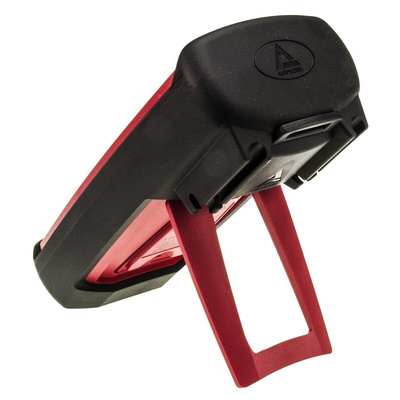

• Magne-Grip holster with magnetic hanging strap (H2-XRA)
• Temperature adapter (TA-1)
• Type K thermocouple probe (TP255A)
• Spare fuse
• Manual

33XR-A Digital Multimeter Data Sheet

33XR-A Digital Multimeter User Manual
