TDC180-5A, Eaton 5A F Ceramic Cartridge Fuse, 6.3 x 25mm, Предохранитель

Eaton Bussmann Series Fast Acting (F) HBC fuses – Ceramic Bodied, 6.3 x 25 mm

This range of fuses from Eaton Bussmann are fast-acting with high rupture capacity. They are suitable for various different uses, providing reliable performance and cost-effective circuit protection. They are ideal for use in plugs to protect cables from melting or catching fire if they are overloaded.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

This range of fuses is 6.3 x 25 mm, meaning they are 25mm long and 6.3mm in diameter.

What is HBC?

HBC stands for high breaking current and refers to the maximum current that the fuse can handle without breaking. It is also known as HRC (High Rupturing Capacity).

What Speed is it?

These fuses are “F” speed rated, which is short for Fast Acting. This is also known as fast blow and is popular in general purpose applications. They are designed not to handle current spikes over the rated current.

What voltage is it?

These cartridge fuses are available with 1 to 13 Amp current ratings for applications where the system voltage rating is 240 Volts AC.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

Approvals

IEC 269-3A

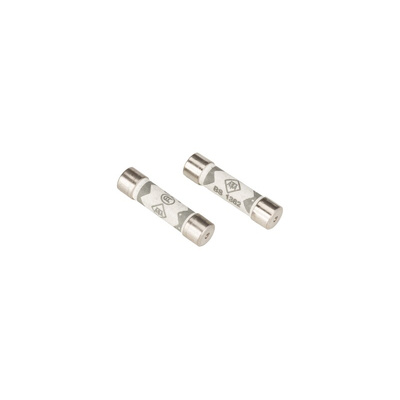

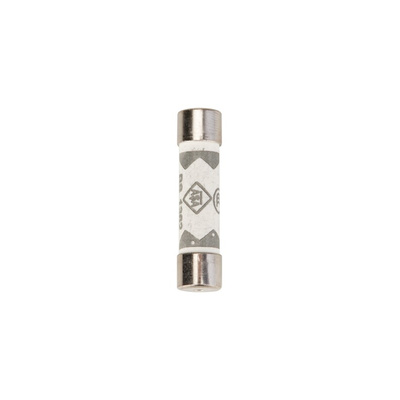

Eaton Cartridge Fuse, 5A, F Speed TDC180-5A

Use this ceramic cartridge fuse from Eaton to protect your circuits and ensure the safe running of electrical appliances. It has a standard body size of 25mm in length and a 6.5mm diameter, which means it's compatible with all British plugs with a current rating of 5A.
This fuse is Type F, which means it's fast-acting and prevents damage from overcurrent and electrical surges. Use it in household and office devices such as blenders, printers and paper shredders.

Features & Benefits

• Ceramic body for thermal stability and heat resistance
• High breaking capacity (HBC) means it clears high-fault as well as low-fault currents
• Corrosion-resistant nickel-plated endcaps for durability and reliable conductivity
• 240V AC voltage rating for compatibility with many domestic and commercial electrical circuits and appliances

How are ceramic cartridge fuses constructed?

This type of fuse has a thin metal element inside that blows or melts when the electrical current is too high. The cartridge body is usually filled with sand or a similar material to reduce arcing and prevent electricity passing through once the element has broken.

Note

Eaton formerly known as Bussmann

Approvals

ASTA, BS1362
