TDC180-13A, Eaton 13A F Ceramic Cartridge Fuse, 6.3 x 25mm, Предохранитель

Eaton Bussmann Series Fast Acting (F) HBC fuses – Ceramic Bodied, 6.3 x 25 mm

This range of fuses from Eaton Bussmann are fast-acting with high rupture capacity. They are suitable for various different uses, providing reliable performance and cost-effective circuit protection. They are ideal for use in plugs to protect cables from melting or catching fire if they are overloaded.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

This range of fuses is 6.3 x 25 mm, meaning they are 25mm long and 6.3mm in diameter.

What is HBC?

HBC stands for high breaking current and refers to the maximum current that the fuse can handle without breaking. It is also known as HRC (High Rupturing Capacity).

What Speed is it?

These fuses are “F” speed rated, which is short for Fast Acting. This is also known as fast blow and is popular in general purpose applications. They are designed not to handle current spikes over the rated current.

What voltage is it?

These cartridge fuses are available with 1 to 13 Amp current ratings for applications where the system voltage rating is 240 Volts AC.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

Approvals

IEC 269-3A

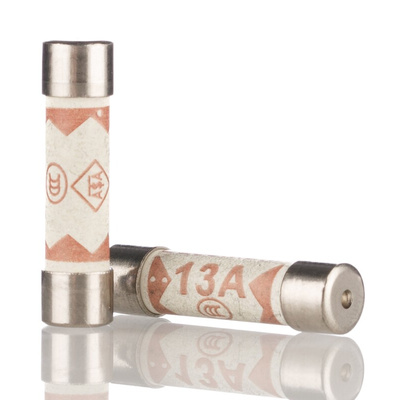

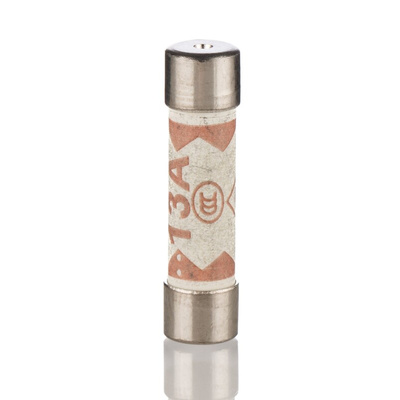

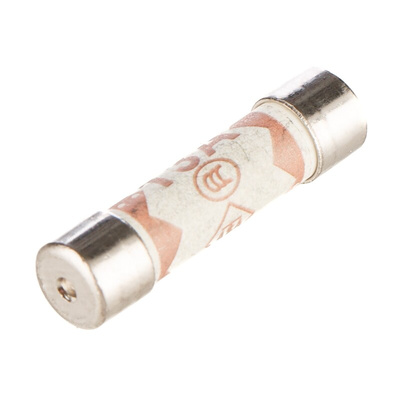

Eaton Ceramic Cartridge Fuse, 13A, F Speed TDC180-13A

This F speed cartridge fuse from Eaton is fast-acting, so it blows quickly when an overload occurs. Use it in an electrical plug to protect a device from overheating or catching fire. It has a tough ceramic body and a high rupture capacity (HRC) of 6kA, so it can safely stop an overcurrent that's considerably higher than the normal operating current of the circuit.
Use this fuse in low-voltage domestic, commercial and industrial applications and with a wide range of electrical appliances including kettles and washing machines.

Features & Benefits

• Comes in a pack of 10 so you can keep spares to hand
• Nickel-plated endcaps are conductive and resistant to rust, for effective and reliable use
• Ceramic body offers high thermal stability

Will this fuse fit into a standard British electrical plug?

Yes – it has a cartridge size of 6.3mm in diameter and 25mm in length, so it fits easily and securely into standard fuse clips and holders. It's important to check that the current and voltage ratings are suitable for your application before installation.

Note

Eaton formerly known as Bussmann

Approvals

ASTA, BS1362

Datasheet - Eaton TDC180 Series

Transition to Bussmann Series
