TDC180-1A, Eaton 1A F Ceramic Cartridge Fuse, 6.3 x 25mm, Предохранитель

Eaton Bussmann Series Fast Acting (F) HBC fuses – Ceramic Bodied, 6.3 x 25 mm

This range of fuses from Eaton Bussmann are fast-acting with high rupture capacity. They are suitable for various different uses, providing reliable performance and cost-effective circuit protection. They are ideal for use in plugs to protect cables from melting or catching fire if they are overloaded.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

This range of fuses is 6.3 x 25 mm, meaning they are 25mm long and 6.3mm in diameter.

What is HBC?

HBC stands for high breaking current and refers to the maximum current that the fuse can handle without breaking. It is also known as HRC (High Rupturing Capacity).

What Speed is it?

These fuses are “F” speed rated, which is short for Fast Acting. This is also known as fast blow and is popular in general purpose applications. They are designed not to handle current spikes over the rated current.

What voltage is it?

These cartridge fuses are available with 1 to 13 Amp current ratings for applications where the system voltage rating is 240 Volts AC.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

Approvals

IEC 269-3A

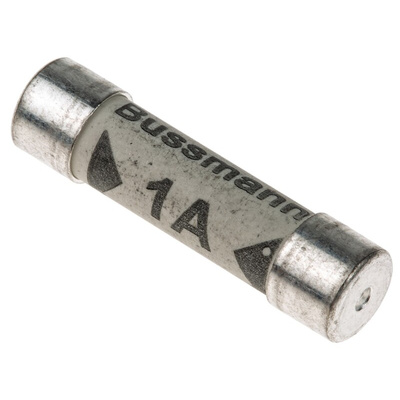

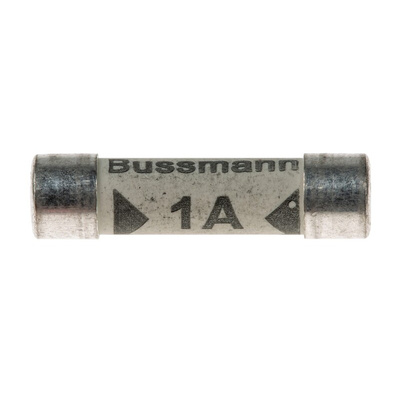

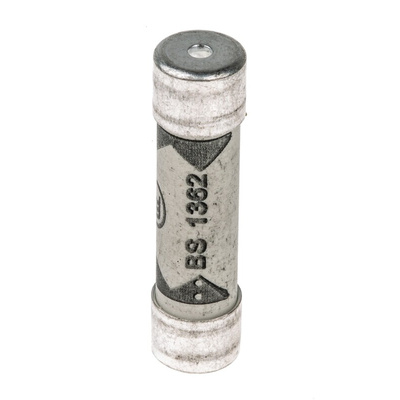

Eaton Ceramic Cartridge Fuse, 1A, F Speed TDC180-1A

Use this ceramic cartridge fuse from Eaton in plugs for small devices such as phone chargers and portable lights. It has a 1A current rating so it's suitable for low-powered applications. As an F speed fuse, it breaks quickly in the event of an overcurrent or short circuit and protects downstream equipment from damage.
The fuse body has a British Standard size of 25mm long, which means it fits securely into the clips of UK plug fuse holders.

Features & Benefits

• Nickel-plated endcaps are conductive and resistant to corrosion for effective and durable use
• High breaking capacity (HBC) of 6kA at 264V AC for safe and reliable use in domestic appliances
• Ceramic fuse body has a high thermal stability

Why should I use a ceramic fuse rather than a glass one?

Fuses with ceramic bodies are able to withstand higher temperatures and offer better thermal protection than glass-bodied alternatives. Choose a ceramic fuse in situations where reliable arc protection is important.

What's the voltage rating of this fuse?

It has a voltage rating of 240 V AC for use in general-purpose domestic and commercial electrical devices.

Note

Eaton formerly known as Bussmann

Approvals

ASTA, BS1362

Datasheet - Eaton TDC180 Series

Transition to Bussmann Series
