1800F B591000, Belden Audio Cable, 0.21 mm² CSA, 5.36mm od, 305m, Black, Кабель

Belden 1800F Digital Microphone Cable, Single-Pair, CL2R Rated

Experience smoother transmission of audio signals with the Belden 1800F digital microphone cable. This audio cable is designed by the experts at Belden for optimal flexibility, interference immunity, flex-life, and durability.

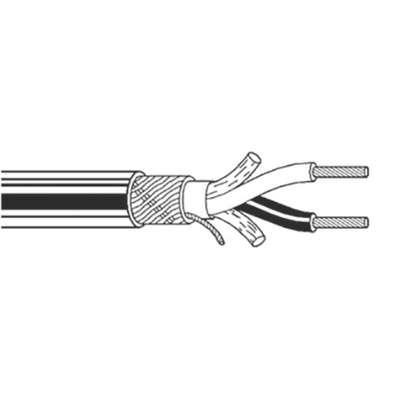

The Belden 1800F uses 1 twisted pair of stranded bare copper conductors (42x40), enabling high conductivity. Its robust PVC outer jacket protects the wires inside against abrasions, water, and oils. You can use this high-performance cable for indoor applications within a temperature range of -20°C to +60°C.

Features and Benefits:

• Foamed HDPE insulation provides excellent mechanical resilience
• Suitable for use in Riser applications due to CL2R rating
• 95% coverage with tinned copper French braid shield, which defends against EMI
• 41.5 lbs (18.8 kg) maximum pull tension

Applications:

Digital microphone
Flexible interconnect cable for digital audio

Standards: AES/EBU digital audio, RoHS, UL 1666 Riser, CL2R

1800F B591000 Audio Cable

The 1800F B591000 is 304.8m and has a matte black sheath.

What is Riser cabling?

Riser rated cabling runs vertically between multiple floors of a building and has flame retardant properties to limit the spread of fire. They are used in non-plenum spaces (where plenum cabling, which needs to meet stricter fire safety standards, is not required).
