1505F B591000, Belden 1505F Series SDI Coaxial Cable, 305m, RG59/U Coaxial, Unterminated, Кабель

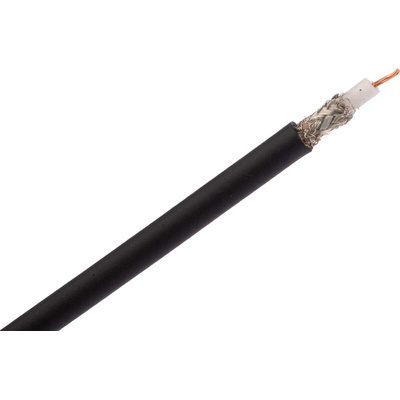

Belden Coaxial Cable, 6.15mm OD, 305m Length - 1505F B591000

Send high-definition signals to your digital video devices with this coaxial cable from Belden. The RG-59/U cable is suitable for use with low-power video and radio frequency signal connections, like those found in video recorders and satellite receivers. High-density polyethylene (PE) foam provides insulation, which helps to protect operators from electric shocks. The PE foam is gas-injected and crush-resistant, so it's able to withstand rough handling during installation and use. This material also resists chemicals and the ageing effects of UV light for longevity in harsh conditions.

Features & Benefits

• Wide operating temperature range of -35°C to +75°C for use in harsh settings
• PVC jacket resists corrosion, so is suitable to use in moist environments
• Insulation process provides the right amount of conductor adhesion for easier stripping and termination of wires
• Easily bends around corners, thanks to its flexible bare-copper stranded centre

Applications

• Mobile studio trucks
• Patch bays
• Remote outdoor field assemblies

What's the overall diameter of this cable?

The overall diameter of this cable is 6.15mm, which also contributes to its flexibility.

Does this cable have an outer shield?

Yes, this cable has a tinned-copper outer shield for added protection against oxidation.
