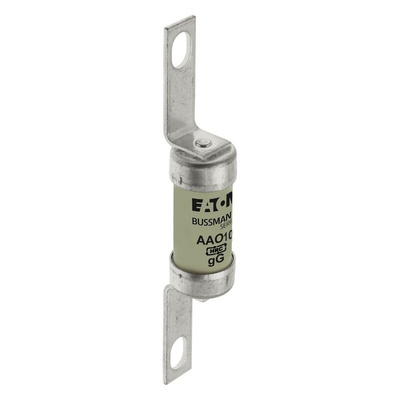

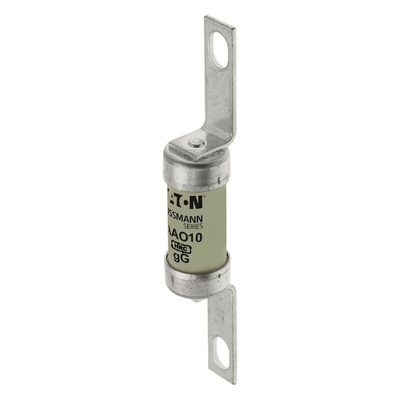

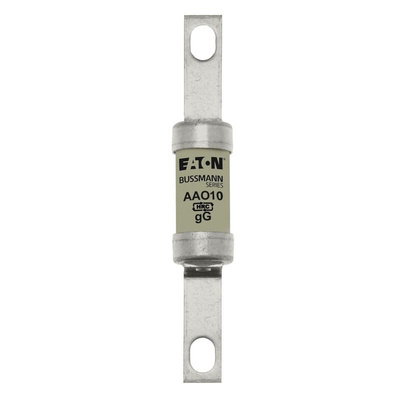

AAO10, Eaton 10A British Standard Fuse, A2, 550V ac, 73mm

Eaton British Standard Fuse, 80kA Rated Switching Capacity, 20.1g Weight - AAO10

To nip electrical hazards in the bud and prevent damage to your appliances, pick this British Standard fuse from Eaton. It's a sacrificial element that takes the fall for faults such as short circuits and current overloads, stopping them from reaching sensitive equipment downstream. The unit has a 10A current rating, making it the right fit for light-duty and medium-duty applications. It comes with offset tags predrilled with holes for easy and secure fastening onto fuse holders, so it performs reliably even in vibrating systems. A rated breaking capacity of up to 80kA means the fuse offers protection in high-current settings without being completely destroyed.

Features & Benefits

• Comes in a pack of 5 for convenience
• Low power loss of 2.1W to minimise energy waste
• gL/gG utilisation category tells you it's an appropriate choice for general-purpose applications
• Light weight of 20.1g puts minimal strain on your setup

What size is this fuse?

The component has compact dimensions of 35.5 (length) x 13.7mm (diameter), making it a space-saving choice for busy setups.

Note

Eaton formerly known as Bussmann

ASTA A2100B

Datasheet

Transition to Bussmann Series
