CEO100, Eaton 100A British Standard Fuse, A4, 500V ac, 94mm

Eaton Bussmann HRC Offset Tag Fuses - BS88 British Standard Fuses

Eaton Bussmann's offset tag fuses (or offset bolted tag fuses) are essentially a cylindrical fuse that is fitted with offset brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage measure. Eaton Bussmann's fuses are commonly found within a multitude of industrial and switchgear applications, electrical equipment, wiring systems and circuit breakers. This fuse range is suitable for general purpose use.

Features & Benefits

• The low-temperature rise enables the fuse to be suitable for high-density mounting
• Fuse links, specifically designed for the protection of equipment
• Conforms to industry standards
• Low voltage fuse
• High rupture capacity (HRC)
• Suitable for three-phase applications
• Suitable for type 2 co-ordinated applications as defined in IEC 947-4
• Low power loss, typically 20% lower than the requirements of BS 88

Why use a slotted tag fuse?

A slotted tag fuse is distinguished by the metal slotted tags that extend off the ends of the fuse. This tag can either enable the fuse to have an offset tag or be centred to the fuse. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure within electrical circuits.

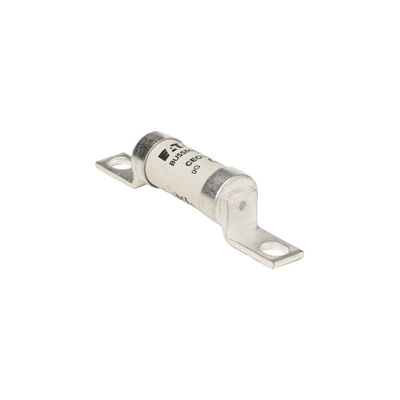

Eaton British Standard Fuse, A4, 100A CEO100

This general-purpose fuse from the Eaton range provides reliable circuit protection in your electrical and industrial systems. It's designed to be a sacrificial device as it has an element that heats up, melts and breaks the circuit in the event of an overcurrent or short circuit.

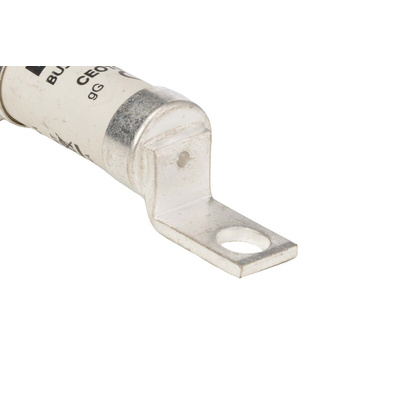

An offset bolted tag on each end of the fuse connect it to a fuse holder for rail mounting. Thanks to its high rupture capacity, there's a lower chance of electrical arcing, so this fuse is a safe choice for heavy-duty industrial applications.

Features & Benefits

• Current rating of 100A and voltage rating of 550V AC for demanding applications
• Tag width of 14.3mm for easy attachment to a fuse holder
• Low power loss for greater productivity and a longer lifespan
• Compact fuse dimensions of 25 (diameter) by 110mm (length) for standard fitting

What is meant by fuse speed?

Fuse speed is the time taken for a fuse to break in the event of a fault current. It depends on the fuse element, the operating temperature and the overload current of the component.

Note

Eaton formerly known as Bussmann
