NSD2, Eaton 2A British Standard Fuse, F1, 550V ac

Eaton Bussmann HRC Offset Tag Fuses - BS88 British Standard Fuses

Eaton Bussmann's offset tag fuses (or offset bolted tag fuses) are essentially a cylindrical fuse that is fitted with offset brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage measure. Eaton Bussmann's fuses are commonly found within a multitude of industrial and switchgear applications, electrical equipment, wiring systems and circuit breakers. This fuse range is suitable for general purpose use.

Features & Benefits

• The low-temperature rise enables the fuse to be suitable for high-density mounting
• Fuse links, specifically designed for the protection of equipment
• Conforms to industry standards
• Low voltage fuse
• High rupture capacity (HRC)
• Suitable for three-phase applications
• Suitable for type 2 co-ordinated applications as defined in IEC 947-4
• Low power loss, typically 20% lower than the requirements of BS 88

Why use a slotted tag fuse?

A slotted tag fuse is distinguished by the metal slotted tags that extend off the ends of the fuse. This tag can either enable the fuse to have an offset tag or be centred to the fuse. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure within electrical circuits.

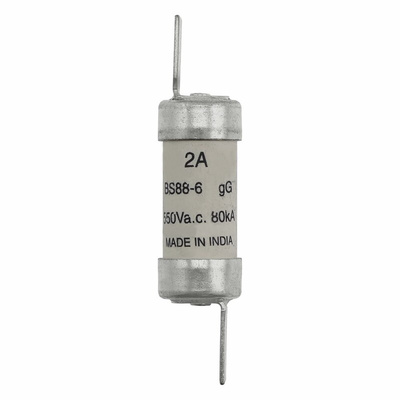

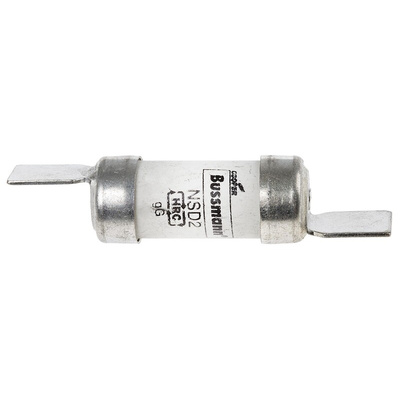

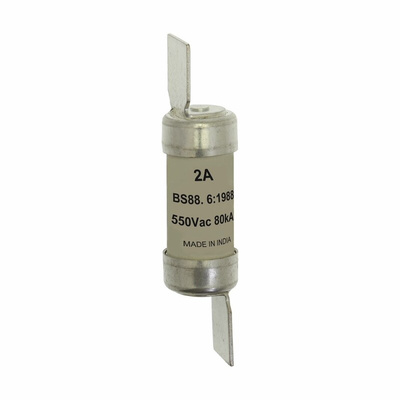

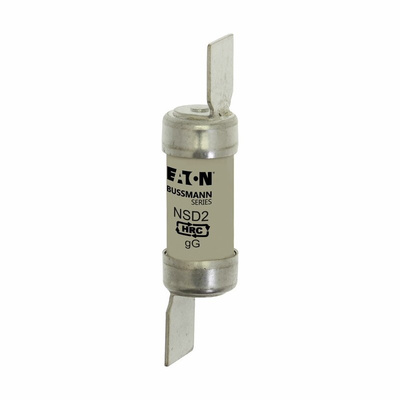

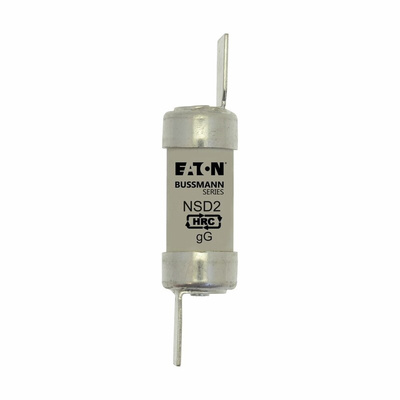

Eaton British Standard Fuse, F1 Size, 2A NSD2

This British Standard fuse from Eaton is a weak-link device that prevents current overloads, overheating and short circuits. It has a cylindrical body with a thin offset tag at each end. These tags attach to your circuit’s fuse holder, and if a current level gets too high, the central wire in the fuse melts away, creating a physical break in the circuit. Use this general-purpose fuse in industrial environments to protect electrical equipment, wiring systems and circuit breakers.

Features & Benefits

• F1 bladed tag design easily secures and slots into the fuse holder
• 2A (amperes) current rating for low-powered circuits
• High rupture capacity (HRC) ensures it can safely interrupt currents of up to 80kA (kiloamperes)
• 20% lower power loss than the British Standard requires

What fuse holders does this device work with?

This device is commonly used with Eaton DIN rail mount fuse holders. The SC32N model provides the fuse with shrouded protection, as does the 32NN model which also comes with a fault indicator.

Note

Eaton formerly known as Bussmann
