MEAN WELL Switching Power Supply, RQ-125D, 5V dc, 2 A, 2.5 A, 8 A, 500 mA, 124W, Quad Output, 176 → 264 V ac,, Источник питания

Mean Well Power Switch Mode Power Supply

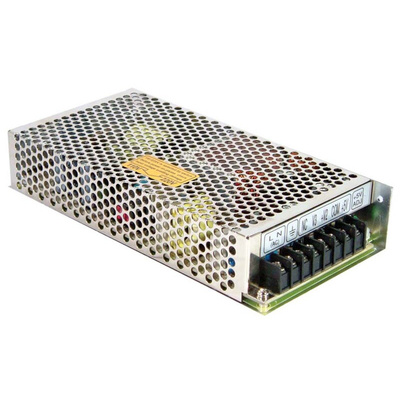

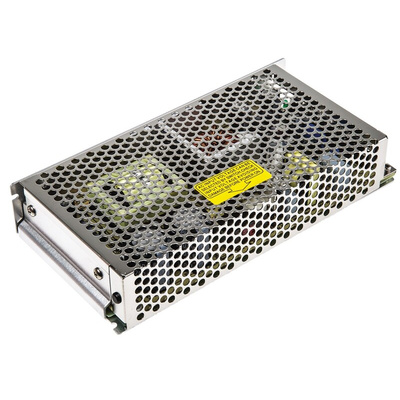

The Mean Well RQ-125D series 124W quad outputs AC to DC embedded switch mode power supply has an output current rating of 8A at 5VDC, 2.5A at 12VDC, 2A at 24VDC and 0.5A at -12VDC. It has a universal input supply voltage rating from 88VAC to 132VAC/176VAC to 264VAC (selected by switch) and 248VDC to 373VDC (withstands 300VAC surge for 5second without damage).
Note:
De-rate above 35°C operating temperature (except RQ-125 derate above 50°C)
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

high-efficiency up to 82%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Short circuit protection
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection

Certifications

EN 60601-1
UL 60601-1
UL approved
TUV approved
CB approved
EN 61000-3-2 (harmonic current)
EN 55022 Class B (EMC)

Datasheet

RQ-125 Series specification sheet

Declaration Of Conformity
