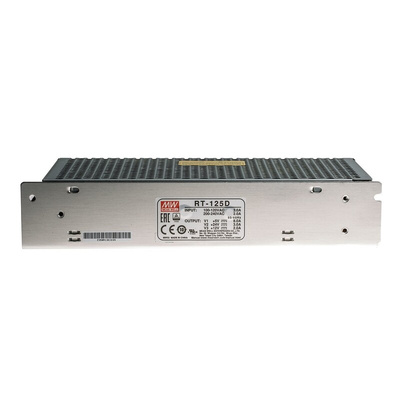

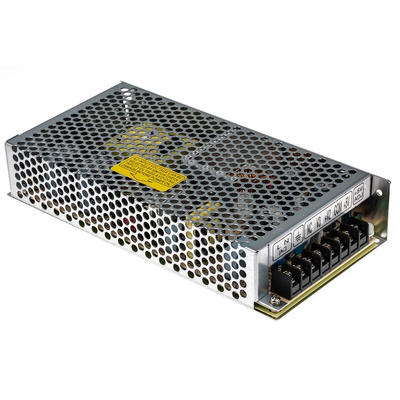

MEAN WELL Switching Power Supply, RT-125D, 5 V dc, 12 V dc, 24 V dc, 2A, 136W, Triple Output, 176 → 264 V ac,, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well RT-125 series 136W triple output AC to DC embedded switch mode power supply has an output current rating of 8A at 5VDC, 3A at 24VDC and 2A at 12VDC. It has a universal input supply voltage rating from 88VAC to 132VAC and 176VDC to 264VDC.
Note:
De-rate above 40°C operating temperature (except RT-125 de-rate above 50°C)
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

high-efficiency
Long life and high reliability
Low profile
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors of105°C
Easy installation

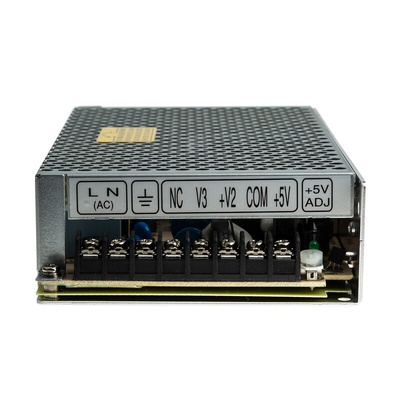

Screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Full load burn-in test 100%
Short circuit protection
Overload and overvoltage protection

Certifications

EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B
EN61000-4-2,3,4,5,6,8,11
EN61000-6-2 (EN50082-2)
Criteria A
•

Datasheet

RT-125 Series specification sheet

Declaration Of Conformity
