MEAN WELL Switching Power Supply, RT-65C, 5V dc, 2.2 A, 5 A, 500mA, 65.5W, Triple Output, 125 → 373 V dc, 88, Источник питания

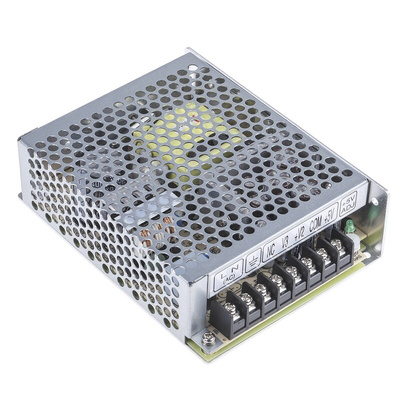

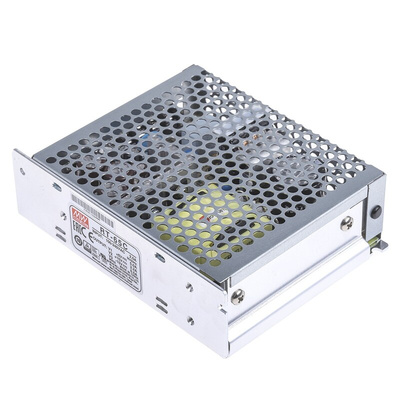

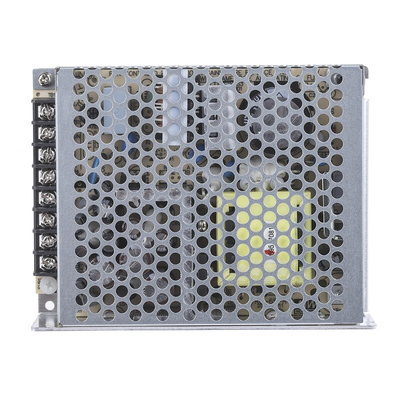

Mean Well Switch Mode Power Supply

The Mean Well RT-65 series 64.5W triple output switch mode power supply has an output current rating of 5A at 5VDC, 2.2A at 15VDC and 0.5A at -15VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 125VDC to 373VDC.
Note:
De-rate above 40°C operating temperature (except RT-125 de-rate above 50°C)
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

high-efficiency
Long life and high reliability
Low profile
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors of105°C
Easy installation
Screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Full load burn-in test 100%
Short circuit protection
Overload and overvoltage protection

Certifications

EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B
EN61000-4-2,3,4,5,6,8,11
EN61000-6-2 (EN50082-2)
Criteria A
•

RT-65 Series specification sheet

Declaration Of Conformity
