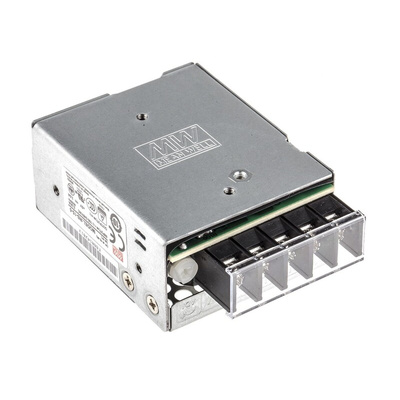

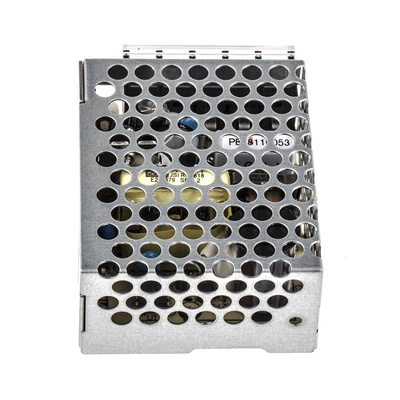

MEAN WELL Switching Power Supply, RS-15-5, 5V dc, 3A, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V ac Input, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RS-15 series 15W single output AC to DC embedded switch mode power supply has an output current rating of 3A at 5VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 370VDC.
Note:
De-rate above 50°C operating temperature
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

high-efficiency up to 77%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage
Short circuit protection
Power on LED indicator
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
Full load burn-in test is 100%

Certifications

EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A

RS-15 Series specification sheet

Declaration Of Conformity
