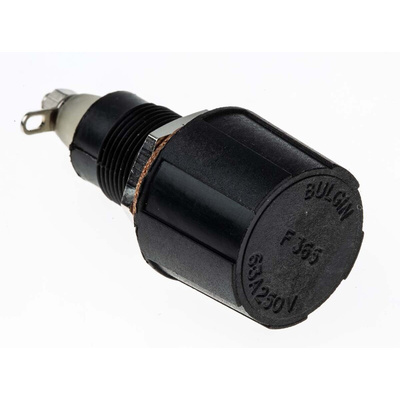

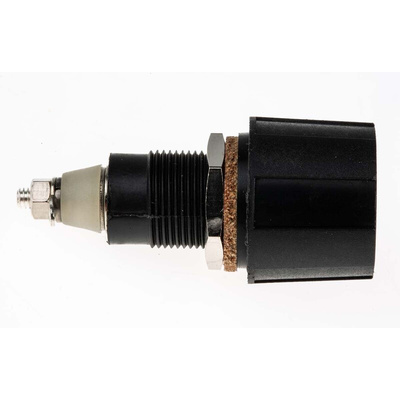

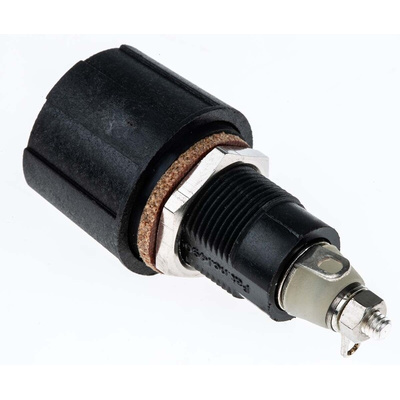

FX0365, Bulgin 6.3A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

Screw Cap, Panel & Barrier Sealed

Fuseholders sealed to panel even when fuse carrier is removed
Ideal exterior or portable equipment usage
Large ribbed carrier allows easy removal, even with gloved hands
IP 66 Rated
Protection: PC1
Glass/Nylon Body

Note

To maintain seal do not adjust connection tags in position

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Fuseholder Product Datasheet
