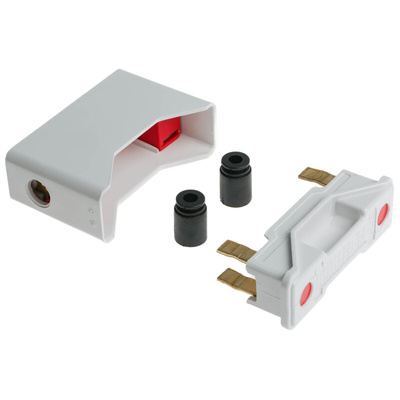

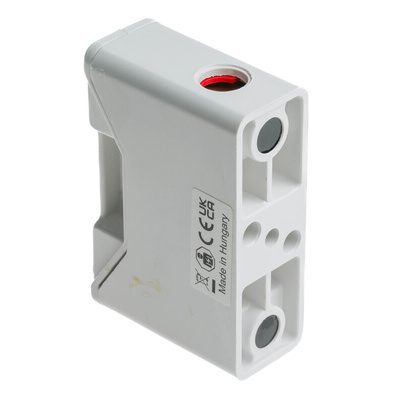

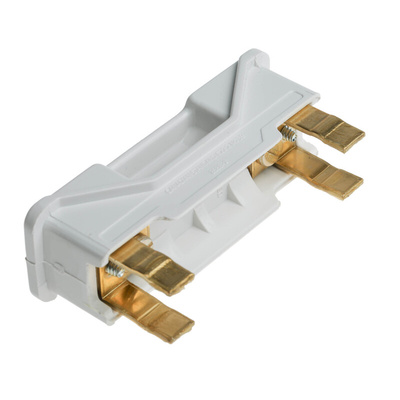

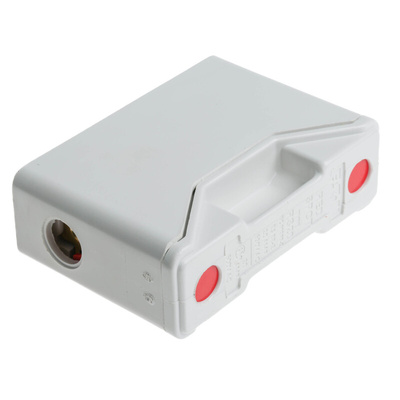

RS20HWH, Eaton 20A Rail Mount Fuse Holder for A1 Fuse, 1P, 690V ac

Eaton Bussmann Series Fuse Holders - Red Spot Fuse Holder Range

This range of Red Spot fuse holders are also known as finger-safe fuse holders, originally created and designed to be used with BS88 fuses. These types of fuse holders will predominantly be found within industrial and commercial environments. The rail mount fuse holders contain fuses that are slotted into sets with metal contacts.

Features & Benefits

• Red Spot range of fuse holders are industry standard for protecting utility and industrial installations
• Anti-vibration and the large contact system ensures a perfect carrier contact alignment and superior electrical contact
• Each conductor insulating sleeve help to prevent inadvertent contact at the entry point whilst fully shrouded terminals deliver an IP20 rating. (Holding an IP20 rating means that the fuse holder has ingress protection against solid objects up to 12 mm - such as a person's finger and no protection against liquids)
• The parts are moulded, constructed from flame-retardant, non-hygroscopic, high dielectric strength phenolic material
• Red Spot fuse holders range offers a multitude of different accessories and Bussman fuses
• Designed to protect applications from potentially devastating effects of low, short circuits and overvoltage conditions
• Compatible with standard and motor rated fuses
• Taper shank fuse fixing screws ensure easy re-entry
• Large fuse carriers contact areas for low resistance and longer life
• Full shrouded construction

What are fuse holders used for?

One of the main functions of a rail mount fuse holder is to offer circuit protection, it is to also offer protection to both the user and the equipment in the event of a circuit overload within any given application.

Note: Essential extra adapter is stock no. 414-213

Eaton Rail Mount Fuse Holder for A1 Fuse, 20A, 660V AC RS20HWH

Choose this rail mount fuse holder from Eaton for electrical circuit protection in your industrial and commercial environments. It features terminals that receive power from the mains source and contacts that are connected to the fuse to pass energy to it. A robust thermoplastic shroud provides insulation that protects you from electric shock.
This component is designed to function with A1 fuses to protect circuits from overcurrent or voltage spikes. It's commonly found in switchgears and circuit breakers.

Features & Benefits

• Anti-vibration construction for use in systems prone to tremor
• Constructed with flame-retardant phenolic materials for fire safety and protection
• Large contact areas for low resistance and an improved lifespan
• IP20 (ingress protection) rating for finger and solid material safety

Is this fuse holder waterproof?

This component is not protected against water and other liquids. As such, it's important to ensure that it's not installed in a wet or humid environment.

What's the current rating of this unit?

This fuse holder has a current rating of 20A.

Note

Eaton formerly known as Bussmann

Transition to Bussmann Series

RS20HWH Datasheet
