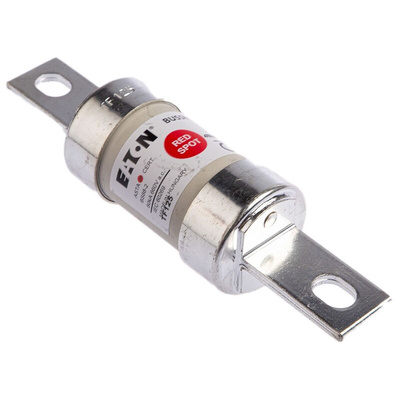

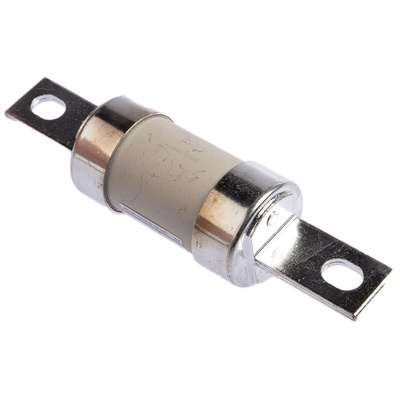

TF125, Eaton 125A British Standard Fuse, B2, 660V ac, 111mm, Предохранитель

Eaton British Standard Fuse, High Rupture Capacity, T Speed - TF125

When you want to shield your equipment from short circuits and current overload, this British Standard fuse from Eaton is up for the job. It's a staunch first line of defence and stops rogue current from reaching downstream equipment. Thanks to a breaking capacity of 80kA, this fuse packs a punch in high-powered electrical systems. A high rupture capacity means it can stand up to voltages as high as 660V AC without breaking a sweat.

Features & Benefits

• Meets BS 88-2 standards to withstand voltage of up to 660V AC
• Current rating of 125A for durable performance
• Slow-acting T fuse speed prevents premature rupturing and handles short inrush currents

How do I mount this fuse?

You can mount this fuse by slotting the tags into a Red Spot fuse holder from the RS200 range. It comes with pre-cut mounting holes so you can bolt it to a surface without any need for drilling.

Can I reuse this fuse?

No, you can't reuse this fuse. Once it blows, you'll need to remove and replace it.

Note

Eaton formerly known as Bussmann

ASTA A3088A

Datasheet - Eaton TF125
