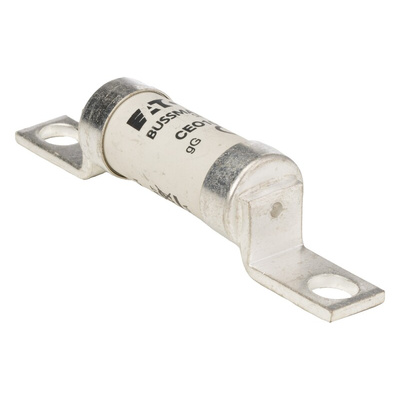

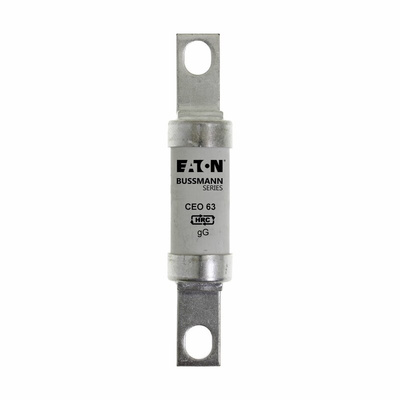

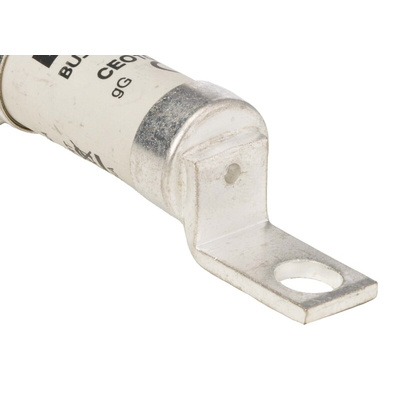

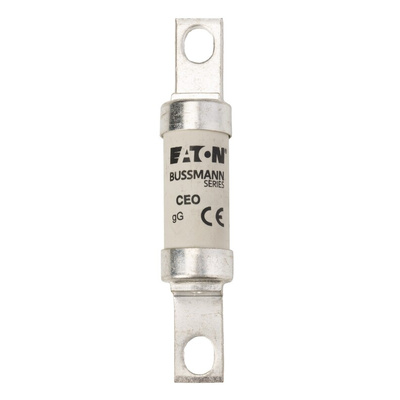

CEO63, Eaton 63A British Standard Fuse, A4, 500V ac, 94mm

Eaton Bussmann HRC Offset Tag Fuses - BS88 British Standard Fuses

Eaton Bussmann's offset tag fuses (or offset bolted tag fuses) are essentially a cylindrical fuse that is fitted with offset brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage measure. Eaton Bussmann's fuses are commonly found within a multitude of industrial and switchgear applications, electrical equipment, wiring systems and circuit breakers. This fuse range is suitable for general purpose use.

Features & Benefits

• The low-temperature rise enables the fuse to be suitable for high-density mounting
• Fuse links, specifically designed for the protection of equipment
• Conforms to industry standards
• Low voltage fuse
• High rupture capacity (HRC)
• Suitable for three-phase applications
• Suitable for type 2 co-ordinated applications as defined in IEC 947-4
• Low power loss, typically 20% lower than the requirements of BS 88

Why use a slotted tag fuse?

A slotted tag fuse is distinguished by the metal slotted tags that extend off the ends of the fuse. This tag can either enable the fuse to have an offset tag or be centred to the fuse. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure within electrical circuits.

Eaton British Standard Fuse, 63A, 550V AC CEO63

Improve the safety of your electrical circuits with this British Standard fuse from Eaton. It trips power in the event of a current overload or short circuit to reduce the risk of electrical fires, accidental shocks and damage to equipment. As the fuse is resistant to the aging effects of ultra-violet light and weathering, it offers a long service life while needing almost no maintenance. If it blows, it's easy to replace by simply unscrewing it from a fuse carrier. Installing a new fuse is just as easy thanks to the bolting tags on either end. You'll find components like this mounted in distribution boxes that supply power to factories or commercial buildings.

• Releases no sparks, gas or electrical discharge when it blows, for improved safety
• Compact design with space-saving dimensions of 110 (L) x 58.5 (H) x 21mm (D)
• Low power loss so doesn't waste energy and improves electrical efficiency

Is this a fast-acting or slow-acting fuse?

This gG type fuse from Eaton is fast-acting and versatile. It's useful for protecting a wide range of general-purpose equipment and devices, such as computers. It also stops cabling from melting and catching on fire if an overcurrent occurs.

Note

Eaton formerly known as Bussmann
