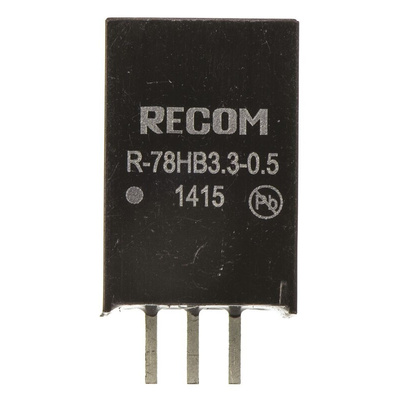

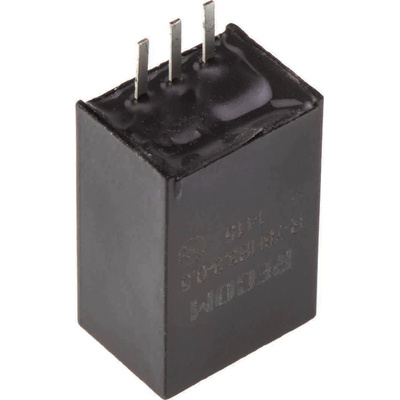

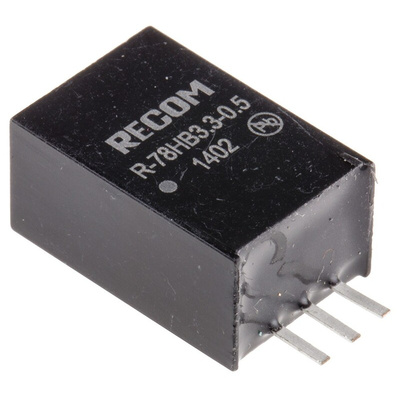

R-78HB3.3-0.5, Recom Switching Regulator, Through Hole, 3.3V dc Output Voltage, 9 → 72V dc Input Voltage, 500mA Output Current,, Импульсные стабилизаторы

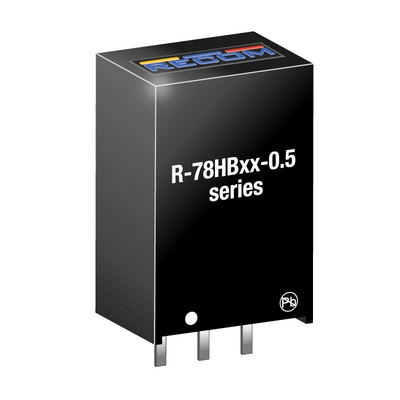

R78HBxx-0.5 Series

Non-isolated
Medical safety approval EN-60601-1-2
High efficiency switching regulator, up to 96%
No need for heatsinks
Very wide input voltage range, up to 72V
Low ripple and noise
Thermal shutdown and continuous short circuit protection
Pin compatible with LM78xx Linears
Industry standard SIP-3 package

Note

Derate output when operating temperature above 71°C.
MTBF to MIL-HDBK-217F (25°C).

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1

RECOMSwitching Regulator, Through Hole, 3 Terminal Pins - R-78HB Series - R-78HB3.3-0.5

Safeguard your appliances with this switching regulator from RECOM. It's a DC-DC power converter that steps down a high varying voltage to a fixed voltage, making it ideal for use in systems that could suffer damage from fluctuating power. The unit comes with a three-pin terminal for easy installation onto your PCB. As it comes with integrated short-circuit protection, it acts as a buffer to safeguard attached devices in the event of a power surge. Thanks to a wide operating temperature range between -40°C and +85°C, this regulator performs safely in harsh conditions.

Features & Benefits

• 3.3V DC output voltage makes it suitable for use in low-power applications
• 800kHz maximum switching frequency at full load for fast and efficient control
• 0.5A maximum current for low heat dissipation
• 4g weight for minimal strain on your PCB

Applications

• Telecommunications systems
• Domestic appliances
• Automotive industry
• Communication and networking devices

What size is this component?

This component's dimensions are 11.5 (length) x 8.5 (width) x 17.5mm (height), so it won't take up much space on your PCB.
