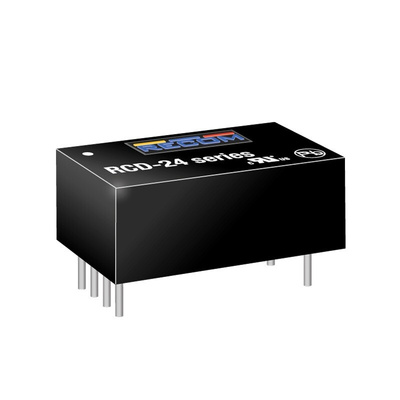

RCD-24-0.35, Recom LED Driver, 2 → 35V dc Output, 350mA Output, Constant Current Dimmable, Драйвер

RECOM LED Driver, DC/DC Type, 12.25W Power Rating - RCD-24 Series - RCD-24-0.35

Need to power your LED system from a source that provides direct electrical current? Choose this DC/DC LED driver from RECOM. It's designed to change an input supply between 4.5 and 36V DC to a stable voltage between 2 and 35V DC, with a maximum output of 350mA. This improves the performance of your lights and prevents them from overheating. For versatility, this unit lets you select from two dimming options, including analogue voltage and digital pulse-width modulation signals.

Features & Benefits

• Broad operating temperature range between -40°C and +85°C for use in challenging conditions
• Compatible with through-hole mounting for quick and easy installation
• 96% efficiency, so it's energy-saving

Applications

• Televisions
• Traffic signals
• Commercial mood lighting

What are the dimensions of this LED driver?

The dimensions of this unit are 22.1 (L) x 12.6 (W) x 8.5mm (H), so it's a compact option for use in tight or awkward work areas.

What kind of lights does this unit support?

This unit is designed for systems that drive high-powered white LED lights.

LED Drivers

Datasheet
