RSO-2415D, Recom RSO DC-DC Converter, ±15V dc/ ±34mA Output, 18 → 36 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

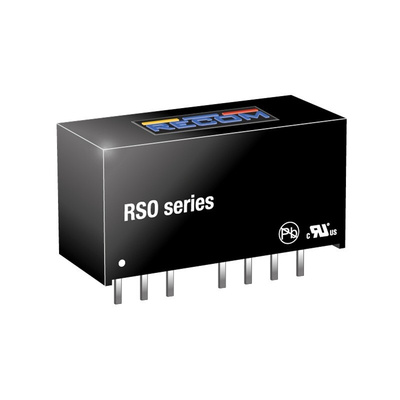

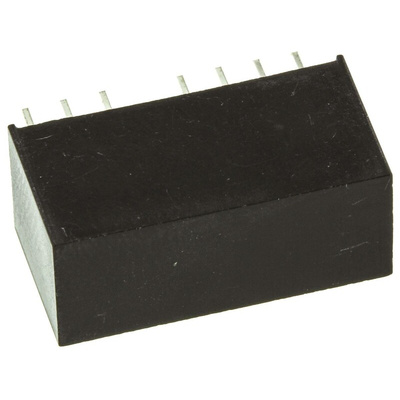

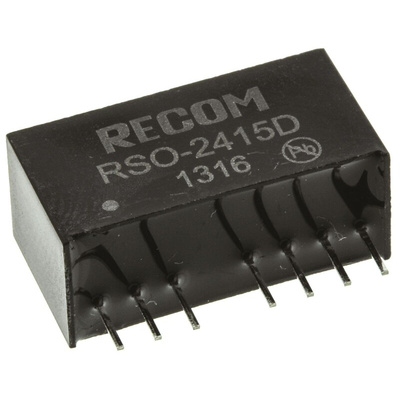

RECOM DC-DC Converter, 18 to 36V DC Input Voltage, +15V DC Output Voltage - RSO Series - RSO-2415D

Make the most of your energy supply with this DC-DC converter from RECOM. It converts inputs between 18 and 36V DC to a balanced output of ±15V DC, making it a safe bet for powering low-voltage equipment. Through-hole mounting ensures a secure connection to your PCB that stays put even in shaky situations. The converter stops burning in 10 seconds or fewer in the event of a fire, so you can count on it for safety in volatile work areas.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in challenging settings
• Remote ON/OFF control for convenient operation
• Low output ripple and noise of 50mVp-p for clear signals
• Efficiency of 79 to 80% means it wastes little energy as heat
• Built-in short-circuit protection for increased electrical safety

Applications

• Radio and TV broadcast studios
• Gaming consoles
• Desktop computers

How large is this DC-DC converter?

This unit has compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (H), so it's ideal for installation in confined spaces.
