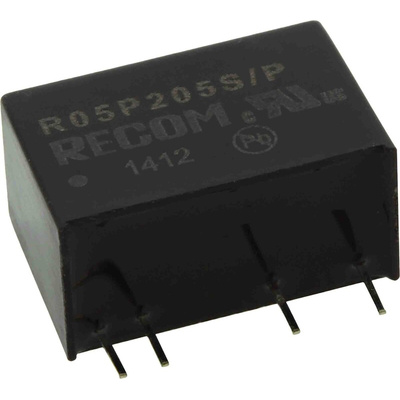

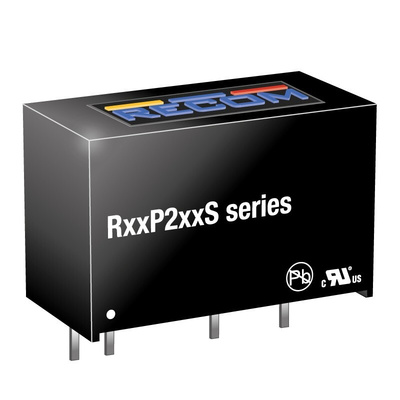

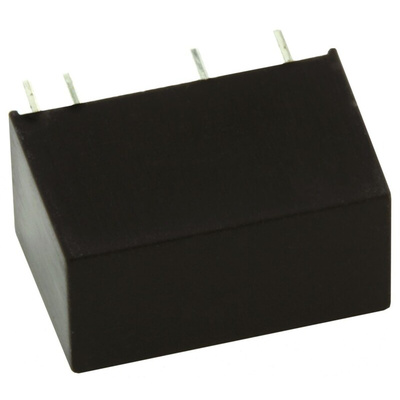

R05P205S/P, Recom R05P DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 5V DC Output Voltage, 79 to 84% Efficiency - R05P Series - R05P205S/P

Safely power through low-voltage applications with this DC-DC converter from RECOM. It turns voltage inputs between 4.5 and 5.5V DC into a steady output of 5V DC, helping to ensure consistent performance. Isolation keeps the input and output separate to reduce the risk of electrical damage. The system's efficiency of 79 to 84% means it puts a lid on energy waste. Installation is a cinch, as you can simply punch the pins through the holes on your PCB and solder them in place for a secure fit.

Features & Benefits

• Compact dimensions of 19.5 (L) x 9.8 (W) 12.5mm (H) for space-saving installation
• Wide operating temperature range between -40°C and +85°C for use in harsh conditions

Applications

• Consumer electronics
• Industrial machinery
• Medical equipment
• Testing and measuring devices

Why is it important to use a converter?

Often, the current and voltage supplied through mains power sources either fluctuate or are too high for the safe operation of equipment. A converter changes these power inputs and keeps them at acceptable levels to safeguard your equipment from damage and ensure reliable performance.
