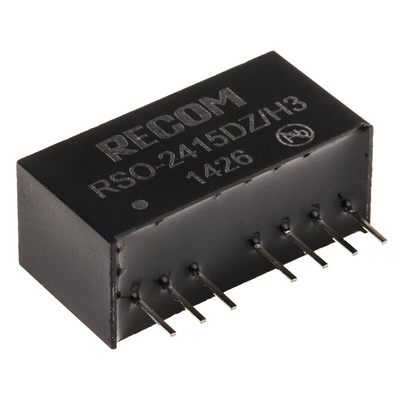

RSO-2415DZ/H3, Recom RSO DC-DC Converter, ±15V dc/ ±34mA Output, 9 → 36 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Recom 1W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RSO Series

RSO series 1W single/dual output regulated DC to DC converters with 4:1 input and high power density. These 1W single/dual output regulated DC to DC converters have On-Off control and 3kVDC isolated versions are ,medically approved.

Ultra-wide 4:1 input voltage range
Regulated outputs
Low noise
No external capacitor needed
Remote On/Off Control
Continuous short circuit protection
UL94V-0 package material
SIP-8 package

Note

Part numbers suffixed with 'H3' have 3kVDC isolation and are medically approved
Power derates above 75°C operating temperature
MTBF to MIL-HDBK-217F (25°C).

Standards

EN-60950-1
EN-60601-1 (medically approved, part numbers suffixed with 'H3' only

RECOM DC-DC Converter, 80% Efficiency, SIP Package - RSO Series - RSO-2415DZ/H3

Looking for a power solution for your low-voltage applications? Get this DC-DC converter from RECOM to keep efficient performance on track. It's a versatile device that takes a wide input range between 9 and 36V DC and delivers a 15V DC output. With an isolation of 3kV DC, it helps prevent electric shocks, making it a safe option for direct contact with circuits. Simply punch the unit's pins through the holes on your PCB to get your power supply up and running in a jiffy.

• Remote on/off control for easy use
• Continuous short-circuit protection helps limit damage and cuts downtime out of the equation
• Broad operating temperature range between -40°C and +85°C to withstand hazardous environments

Applications

• Medical applications
• Handheld devices
• Lighting controls
• Automotive industry

What size is this DC-DC converter?

With dimensions of 21.8 (L) x 11.1mm (D), it's a small device that easily fits onto a densely-packed PCB.

What's the rated efficiency of the converter?

This cool-running unit has an efficiency rating of 80%, meaning it keeps a lid on power lost through heat generation.
