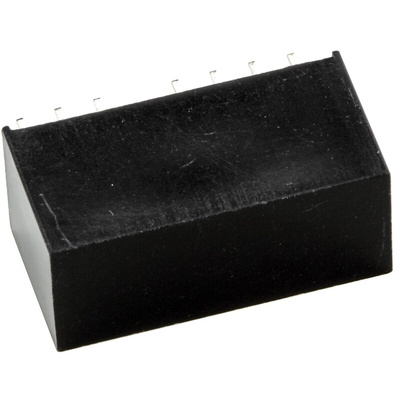

RS-2409SZ/H3, Recom RS DC-DC Converter, 9V dc/ 222mA Output, 9 → 36 V dc Input, 2W, Through Hole, +75°C Max Temp -40°C Min Temp, Преобразователь

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS-Z/H3 Series

Ultra-wide 4:1 input voltage range
Regulated outputs
3kV input / output isolation
Low noise
No external capacitor needed
Remote On/Off Control
Continuous short circuit protection
UL94V-0 package material
SIP-8 package

Note

De-rate above 75°C operating temperature.
MTBF to MIL-HDBK-217F (25°C).

RECOM Through-Hole DC-DC Converter, 9V DC Output, 2W Power Rating - RS Series - RS-2409SZ/H3

Match the voltage requirements of a load to your power supply with this DC-DC converter from RECOM. A wide input voltage range between 9 and 36V DC means it's compatible with various low-voltage power supplies. The unit features isolated primary and secondary circuits and a high isolation voltage of 3kV DC to prevent electrical damage to your sensitive equipment. It has a high efficiency rating of 80%, so you can be sure of minimal power loss and optimal performance.

Features & Benefits

• Self-extinguishing housing for safety in the event of a fire
• Continuous short-circuit protection to reduce the risk of damage to attached devices
• Wide operating temperature range of -40°C to +85°C for use in harsh industrial environments
• Remote on/off function for convenient operation

Applications

• Industrial process control systems
• Food and beverage manufacturing
• Pharmaceutical and medical industries

What's the minimum load this converter can handle?

This converter needs a minimum of 10% load on the output in order to maintain good function.

How long will this converter last?

This converter has a mean time between failures of approximately 1,398,000 hours at an operating temperature of +25°C, making it a long-lasting choice.
