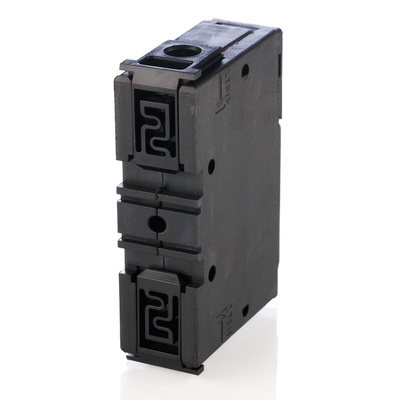

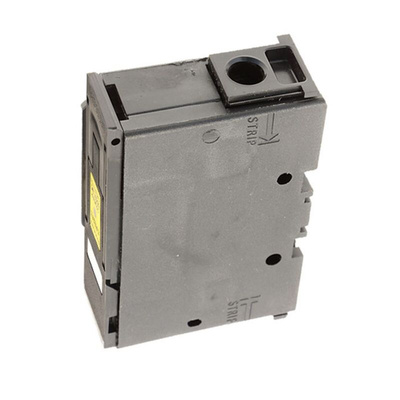

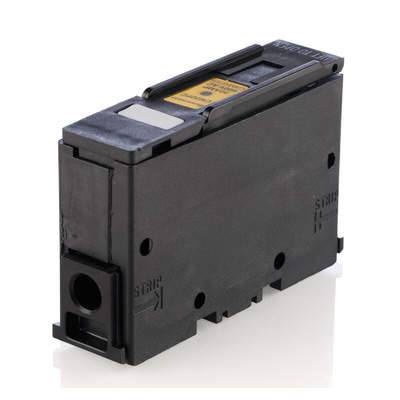

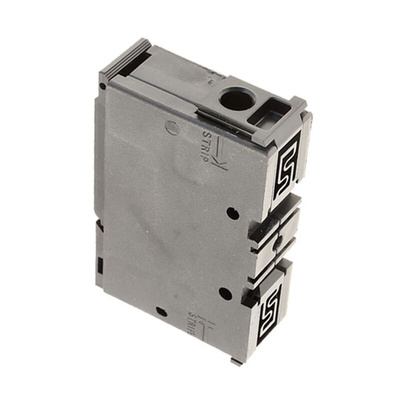

CM32FC, Eaton 32A Rail Mount Fuse Holder for A1 Fuse, 1P, 660V ac

Eaton Rail Mount Fuse Holder, Screw Terminal Type, Front Connection - Camaster Series - CM32FC

Boost your system's electrical safety with the help of this rail mount fuse holder from Eaton. It clips directly onto your standard-size 35mm DIN rail for easy integration with wider power control units and circuits. Once mounted, insert your fuse directly into the holder for convenient access and replacement. The unit is fully shrouded to protect the working against tampering, environmental exposure and power faults. Thanks to a voltage rating of 660V AC, you can use it in domestic appliances and commercial lighting systems.

Features & Benefits

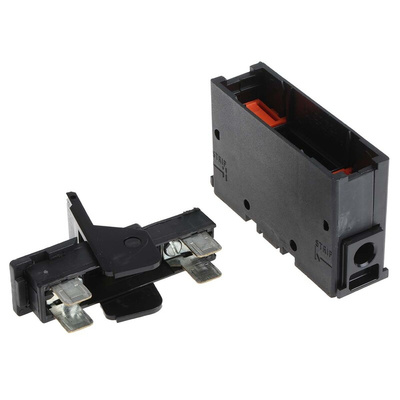

• Cam fitting makes it easy to remove the carrier from the fuse base for improved contact pressure and performance
• Hardened termination screws come insertion-ready, saving time on installation
• Hinged design prevents insertion errors by ensuring the correct fuse positioning

What fuse size can I insert into this holder?

The unit is compatible with A1 size fuses, which are typically found protecting small motors and transformers.

What current rating does the unit have?

The holder has a current rating of 32A, so is a general-purpose option for low-voltage applications.

Note

Eaton formerly known as Bussmann

Datasheet - Eaton Bussmann Series CM32FC

Transition to Bussmann Series

Brochure - Low Voltage BS88 Industrial and Motor Fuse Links

Catalogue - Low Voltage Fuse Links and Fuse Holders
