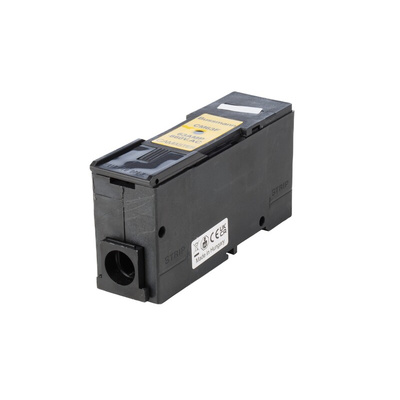

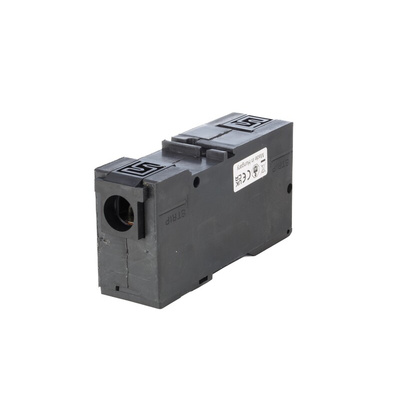

CM63F, Eaton 63A Rail Mount Fuse Holder for A3 Fuse, 1P, 660V ac

Eaton Bussmann Series - CAMaster Range

The CAMaster range of fully shrouded HRC fuse holders are fitted with a cam which allows the carrier to be easily removed from the fuse base. This improves the contact pressure between the fuse carrier and fuse base contacts, in turn improving electrical performance.

The fuse carrier is designed to readily allow 2 pole and 3 pole ganging making this a modular fuse holder which provides improved circuit protection and safety related to the isolation of the electrical circuits by ensuring the correct related poles are removed at the same time.

These fuse holders are front connected but have a unique conversion capability. Using a back stud accessory the standard fuse holders can be converted from a front connection type to back stud and double back stud connection types.

The fuse holders cable terminations incorporate stainless steel saddles and hardened termination screws which maintain a permanent cable clamping to the profiled contact plates. The unique and user convenient design allows for high tightening torques without damage to cables or threads and provides resistance to high cable pull out forces ensuring long term reliability.

Supplied with hardened termination screws which are already backed out ready for cable insertion and are held in captive hinges to prevent loss and ease fuse holder installation.

This range of fuse holders are dual mounting and are compatible with both panel mounting and DIN rail mounting. The DIN rail mount features are manufactured to have equal height and depth above the DIN rail for each of the standard DIN rail dimensions.

The live parts of this fuse holder are fully shrouded within the fuse base by hinged internal shields. The hinged design of these shields mean that inserting of the fuse carrier can only be made with them correction positioned ensuring the protection of the fuse and holder during installation.

The fuse holder has a marking label for ease of circuit identification and is compatible with neon clip-in indicator accessories to help easily identify the status of the fuses.

Eaton Rail Mount Fuse Holder, A3 Fuse Size - CM63F

Looking for reliable and easy-to-install housing for your fuses? Eaton's rail-mount fuse holder safely integrates your fuses with electrical circuits to protect them from current spikes and short circuits. The unit's fitted cam allows for the efficient removal and replacement of fuses. You can use it as both a front-connected and double-back stud connection. Install this item on the electrical circuits in domestic and industrial environments.

• Current rating of 63 A and voltage rating of 660 V AC for standard use
• Holds standard A3 fuses
• Includes indicator showing the functioning of the unit
• Stainless-steel termination saddles and screws to ensure secure cable clamping and long-term reliability
• DIN rail mounting style for reliable installation

Why are fuse holders important?

Fuse holders incorporate fuses with electrical circuits and ensure a reliable current path. They make it easy to remove and replace blown fuses.

How do fuse holders safeguard against electrical shocks?

Fuse holders provide reliable protection by insulating electrical wires and connections so you can't touch them with your bare hands.

Note

Eaton formerly known as Bussmann
