32NNSF, Eaton 32A Rail Mount Fuse Holder for F1 Fuse, 1P, 550V ac

Eaton Bussmann Series - SAFEloc Range

The SAFEloc range of fuse holders are designed to accommodate the compact range of offset blade fuses. The fuse holders include a unique snap/slide action fuse carrier which removes the need for fuse carrier contacts. Fitting the fuse into the holder locks the fuse into position in the base, providing safe insertion and removal. As this fuse holder has direct contact between the fuse blades and the plated base contacts means these fuse holders are more reliable and have a lower watt loss.

The fuse base is made of glass-filled thermoplastic polyester which is high impact resistant. The fuse base contacts are fully shrouded to provide circuit protection and protection from electrical discharge and shock. The shrouds are manufactured with the same snap/slide action to allow access to the contact terminal screws which are semi-captive to reduce the risk of loss during installation.

The fuse holders cable termination screws have a recommended tightening torque of 2.5 - 2.8 Newton meters, it is important that these are screwed in tightly and are holding the cable firmly in place to avoid heat build-up.

This range of fuse holders are dual mounting and are compatible with both panel mount, consisting of a single screw fixing, and DIN rail mount consisting of direct mounting to a 35 mm DIN rail.

SAFEloc fuse holders provide an easy method of protecting a wide range of appliances and electrical equipment such as lighting, heating, motor and control equipment circuits, and offer significant savings on volume, cost, fitting time and power loss.

Features and Benefits

• Carrier slide action enables ease of attachment to fuselink
• Fuselink locked into position for safe insertion and withdrawal
• Low power loss and increased reliability due to contact connection type
• Fully shrouded base contacts
• Either surface or 35mm DIN rail mounting
• Front connection access, 16mm² max cable size

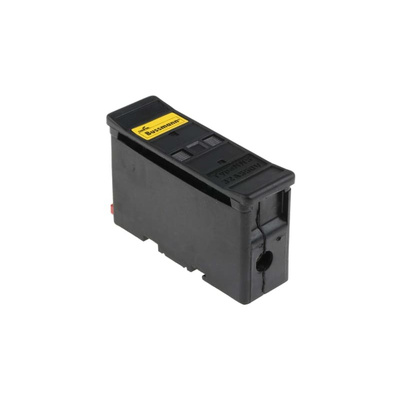

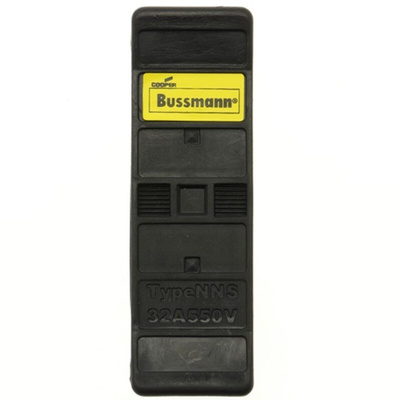

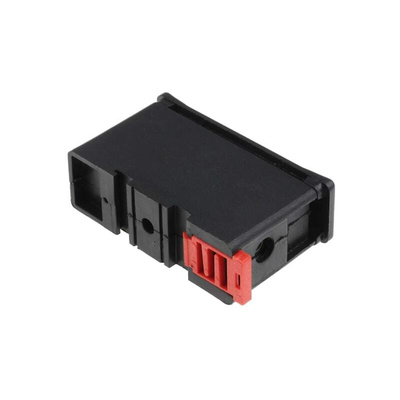

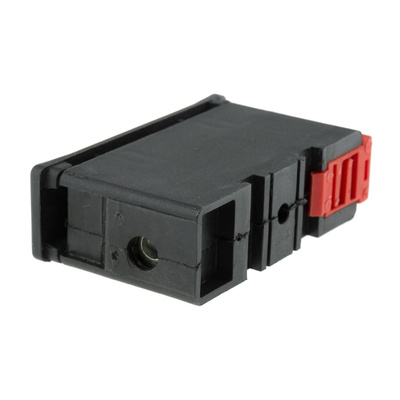

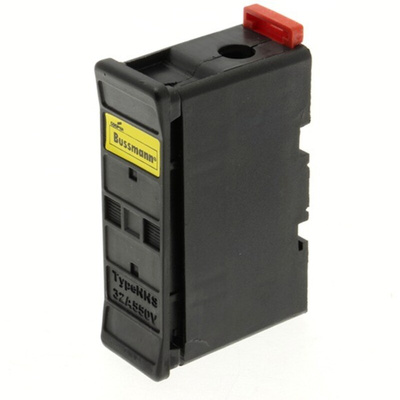

Eaton SAFEloc Dual-Mounting Holder, F1 Fuse Size, 32A 32NNSF

This Eaton rail mount fuse holder from the SAFEloc range is designed for offset tag fuses. It protects your fuse and lets you access it easily when you need to replace it. A seamless slide design means you can fit the fuse simply without the need for carrier contacts. This direct contact also means lower current loss and better performance. You can mount this fuse holder on your preferred surface via a standard DIN rail or a single-screw panel mount.

• Automatic lock mechanism keeps fuse fixed in the holder and prevents loosening through vibration
• Thermoplastic polyester base is highly resistant to chemical damage
• Front connection for quick and easy access in the event of emergencies
• Includes indicator to signal when the fuse needs replacing

How do I mount this Eaton fuse holder using a DIN rail?

Simply clip the bottom of the fuse holder to a compatible DIN rail that measures 35mm in size and then install it in your circuit. This will make it easier to access in environments where space is limited.

Note

Eaton formerly known as Bussmann
