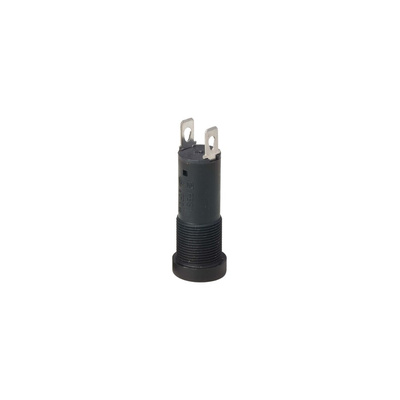

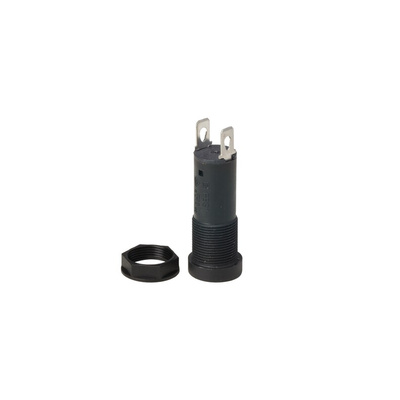

0031.3901, Schurter 10A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

'SCHURTER' Bayonet Cap, FBS Series

Fully inaccessible as defined in BS EN 60127-6.
Retention of fuse carrier during fuse replacement
Low insertion resistance
Thermoplastic Body
Protection: PC3

Approvals

VDE, UL, CSA

Schurter FBS Series Slotted Cap Panel Mount Fuse Holders

The Schurter FBS series 10A panel mount fuse holder offers current and voltage ratings of 10A and 250VAC respectively. This makes it ideal to use in harsh environments. The body of this holder is made of thermoplastic material and tin plated copper alloy is used for contact. It has captive type fuse carrier.

Features and Benefits

• Compact design
• Compatible fuse dimension is 5mmx20mm
• Low insertion resistance due to contact material
• Protection against shock
• Sealed from the rear
• Solder terminal type of 4.8mmx0.5mm

Applications

• Household appliances
• Industrial electronics
• Medical equipment

Certifications

• CSA certified
• IEC60127-6 certified
• IP40 rated
• UL 4248-1 approved

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Schurter Shock-Safe Fuseholder 5 x 20 mm
