462C-1, ZF, 2 Way Joystick Switch Knob, Momentary, IP67 Rated, Джойстик-переключатель

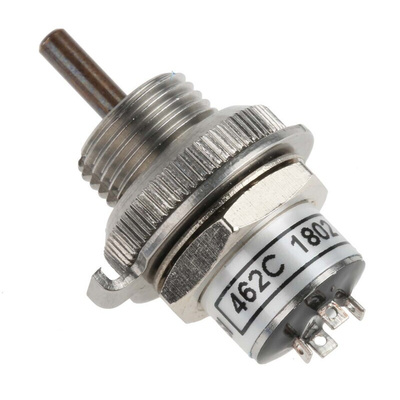

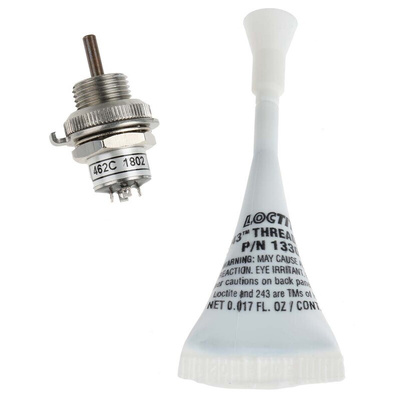

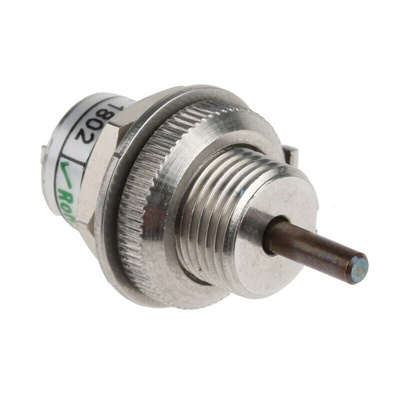

ZF Joystick Knob

The ZF 2 way momentary joystick knob is force operated and has precision fingertip or thumb control which converts the input force of the operator to an analogue output voltage proportional to the applied force and input voltage. It incorporates piezo-resistive technology, first patented and used in joystick technology, by Ultra MSI (U. S. Patent No. 3454920)
Note:
Supplied with a 9.4mm diameter by a 32.5mm long handle

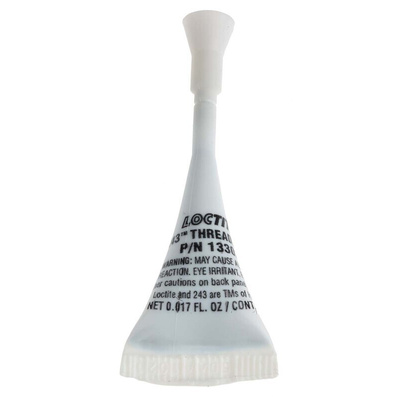

When affixing control knobs to joysticks, use 0.035 hex key (see stock no 609-708). Loctite 222 is also recommended to lock threads on screws (see stock no 514-509)

Features and Benefits

Operating temperature ranges between 0°C and 50°C

Infinite resolution, easy and natural to operate and highly reliable (100,000 hours MTBF)
Epoxy sealed construction makes it capable of sealing to IP67
Performs without loss of precision throughout the operational life
Easy to integrate into instrument panels or for thumb operation in handgrips
Operating temperature ranges between 0°C and 50°C

Applications

Computer cursor control
Robotics
Medical field
Scanning equipment
Security cameras

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC/EN60947
