RS PRO SPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

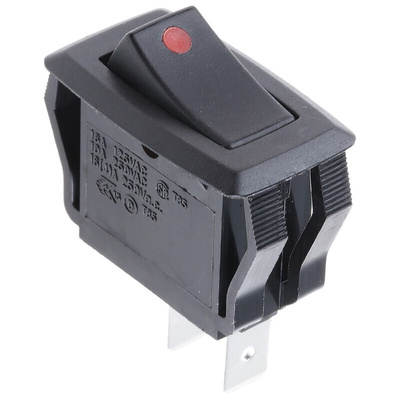

RS PRO SPST Latching Red Dot Rocker Switch 250V

A robust and reliable latching rocker switch featuring a red dot with a Single Pole Single Throw (SPST) configuration and designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case and button for a rocker switch fit for industrial and commercial environments.
The RS PRO rocker switch features a black body with a red dot and colouring on the switch to indicate when the switch is in the on position and features Silver plated Brass contacts avoiding the risk of contact oxidisation maintaining secure and reliable conductivity throughout its mechanical life.

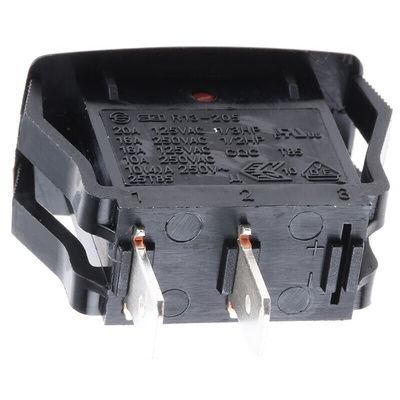

The non-illuminated rocker switch is terminated with 6.35 x 0.8mm quick connect terminals and snap in panel connectors for easy panel mounting in a 13 x 28mm cut out.

Features and Benefits

• Rocker switch with red painted dot


• Non illuminated


• SPST switch configuration


• Nylon frame construction to UL 94V-2


• 125 V (16A)/ 240 V ac (10A) mains rated


• Maximum contact resistance is 50mΩ


• Silver plated Brass contacts


• 6.5 x 0.8 mm quick connect terminals


• Operating temperature range - 20° C to 85° C


• Dimensions of 31.5 x 32.5 x 18.5mm


• Panel mount


• 13.8 x 28 mm panel cut out


• Dielectric Strength of 1500 V ac

Standards and Approvals: CSA (File no. LR45128), VDE (File no. 11037-4401), UL, ENEC, CQC
