RS PRO SPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

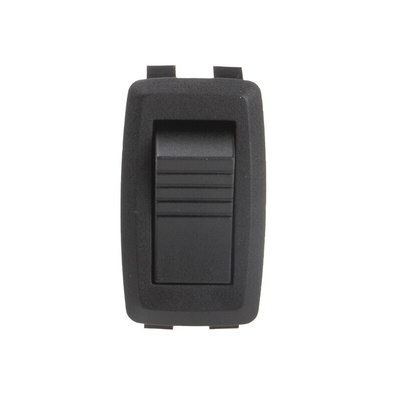

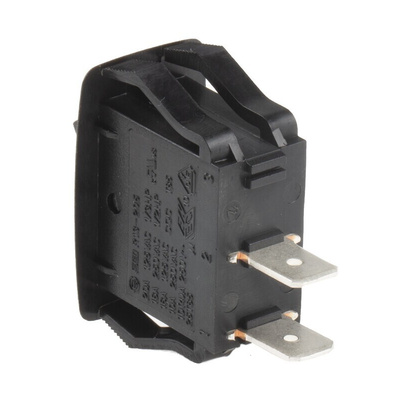

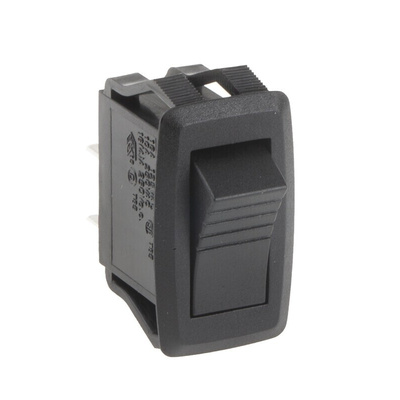

RS PRO SPST Latching Black Rocker Switch 250V

A robust and reliable latching rocker switch featuring a Single Pole Single Throw (SPST) configuration and designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case and button for a rocker switch fit for industrial and commercial environments.
The RS PRO rocker switch features Silver plated Brass contacts avoiding the risk of contact oxidisation maintaining secure and reliable conductivity throughout its mechanical life.
The non-illuminated rocker switch is terminated with 6.35 x 0.8mm quick connect terminals and snap in panel connectors for easy panel mounting in a 13 x 28mm cut out.

Features and Benefits

• Rocker switch


• Non illuminated


• SPST switch configuration


• Nylon frame construction to UL 94V-2


• 125 V (16A)/ 240 V ac (10A) mains rated


• Maximum contact resistance is 50mΩ


• Silver plated Brass contacts


• 6.5 x 0.8 mm quick connect terminals


• Operating temperature range - 20° C to 85° C


• Dimensions of 31.5 x 32.5 x 18.5mm


• Panel mount


• 13.8 x 28 mm panel cut out


• Dielectric Strength of 1500 V ac

Standards and Approvals: CSA (File no. LR45128), VDE (File no. 11037-4401), UL, ENEC, CQC

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Datasheet
